|Name:||Automatic 4 In 1 Filling Machine||Bottle Type:||Round Bottle|
|Material:||Stainless Steel||Compress Air:||0.6m³/min|
|Filling Material:||Flowing Liquid||Weight Accuracy:||With An Error≤±1%|
4 In 1 Monoblock Filling Equipment,
Monoblock Bottle Filling Machine,
4 In 1 Monoblock Filling Machine

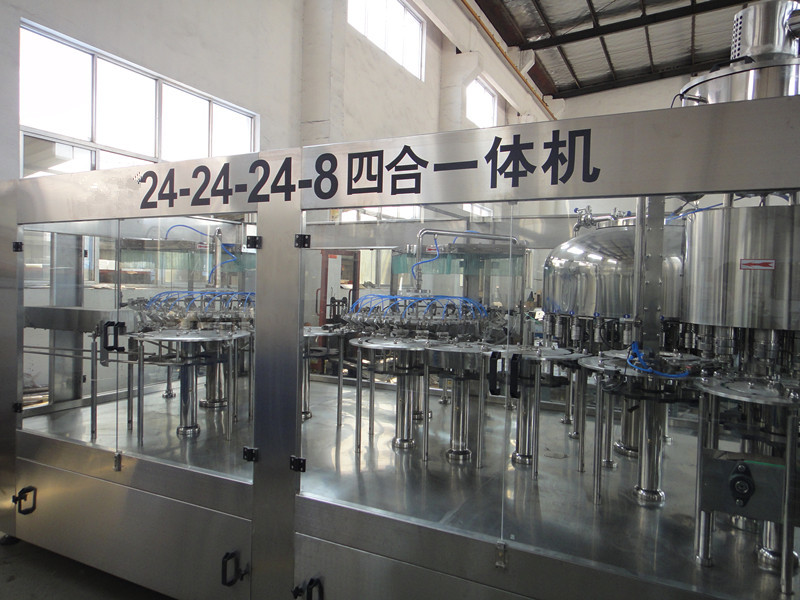

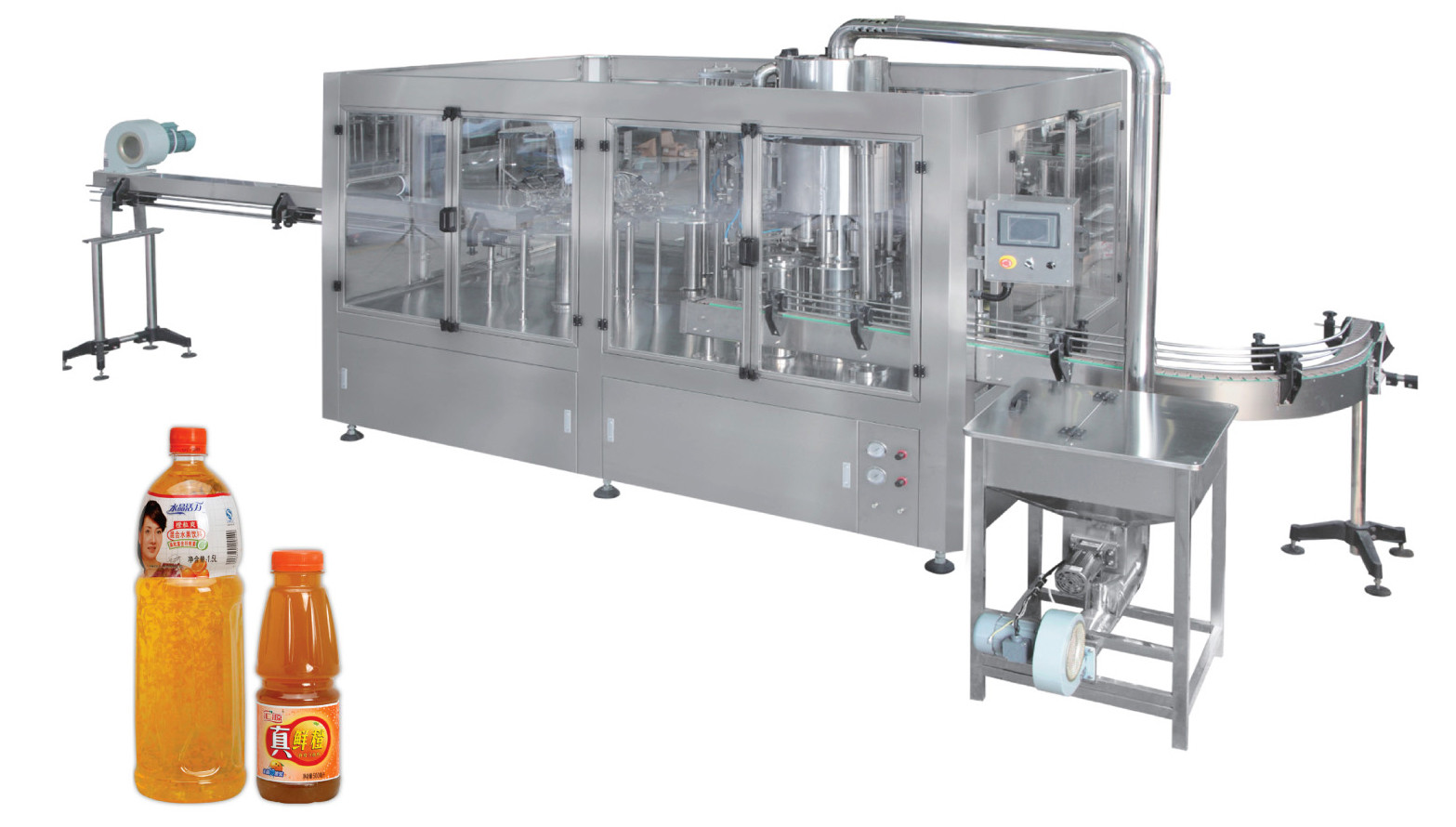

4 In 1 Monoblock Automatic Liquid Bottle Filling Machine
This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.

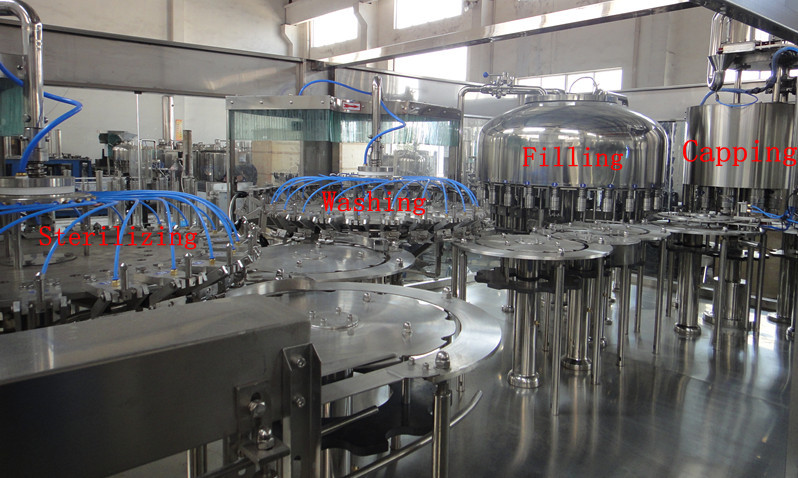

This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: hot filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
The automatic 4 in 1 milk filling machine was equipped with suspension type air conveyor and frequency control of motor speed.
We are the automatic 4 in 1 milk filling machine equipment manufacturer in China.
|Heads of washing,filling,capping||18-18-18-6||24-18-24-8||32-24-32-10|
|Suitable bottle height(mm)||Φ=50-100(330~1500ml)|
