Automatical 32 Filling Head Automatic Milk Bottling Plant

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Contact Now
Detail Information
Name: Multi Head Liquid Filling Machine Capacity: 9000-11000 Bottles Per Hour(500ml Bottle)
Filling Temperature: 85-92℃ Size: (L*W*H)3600*2500*2400mm
Suitable Product: Beverage Juice/Energy Drink/ Milk Weight: 5000KG
Filling Head: 32 Pcs Power: 5.6KW
High Light:

Automatic Milk Bottling Plant

,

Monoblock Multi Head Filling Machine


Product Description

Automatical 32 Filling Head Automatic Milk Bottling Plant



Milk Bottling Plant description:

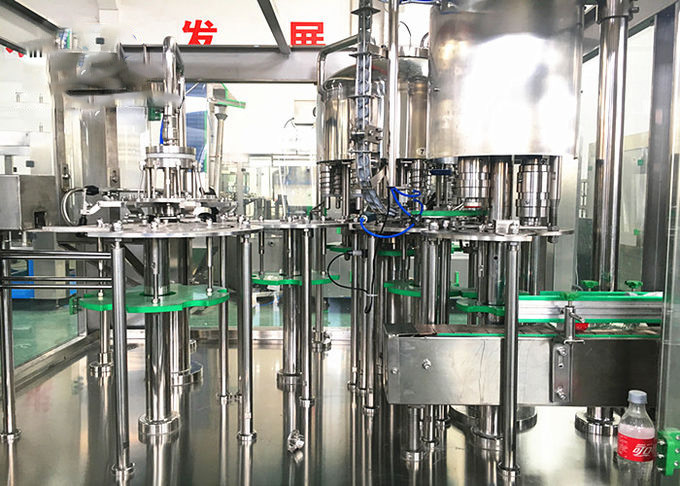

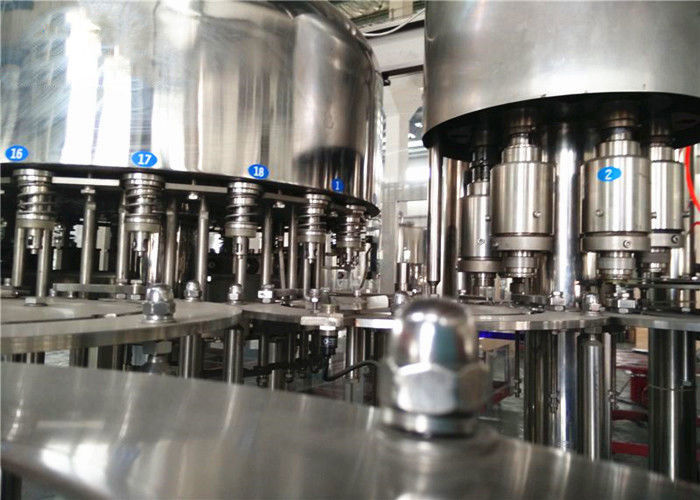

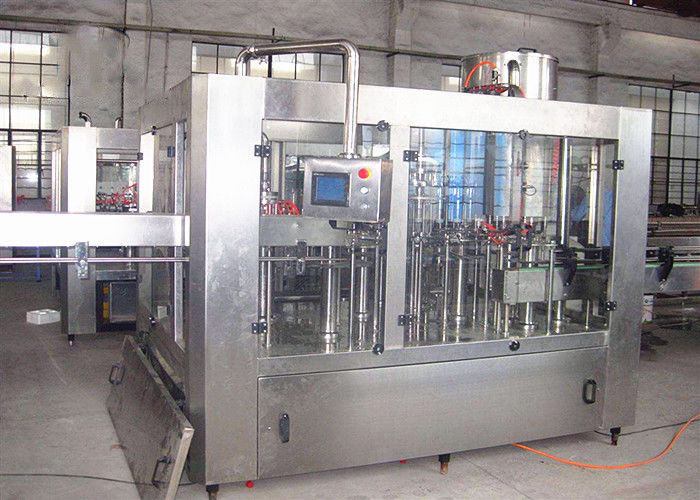

The machine is used for PET bottle washing filling capping, suitable for milk, fruit juice, fruit wine and so on. The liquid filling technology of hot filling which learned from latest technology, we learned from Japan and Germany experience to design this machine. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The liquid level of drinks in filling tank can be controlled automatically. The filling and capping function will be stopped automatically if there is no bottle. The machine will be stopped automatically if bottles are cramped wrongly or caps are not available.



Milk Bottling Plant parameters:



Item                 RCGF12-12-6  RCGF18-18-6  RCGF24-24-8  RCGF32-32-10 RCGF 40-40-13

Capacity

bottles per hour

2000-3000 4000-5000 7000-8000 9000-11000 12000-14000

Suitable bottle

diameter

50-90mm

200-2000ml

Filling temperature

85-92℃

Machine weight

KG

2500 3500 4500 5000 7000

Machine size

L*W*H (mm)

2400*1600

*2400

2400*1850

*2400

3100*2200

*2400

3600*2500

*2400

4000*2800

*2400



























Milk Bottling machine features:







Generally, carbonic acid containing gas beverage, filling is more positioning or quantitative, the material from the bottle mouth always has a specified distance. And fruit juice, tea beverage, especially the production of milk, the material filling, that is, until the bottle is full, so that the residual air in the bottle is minimal, to ensure that the drink itself is not easy to oxidize, so that the drink can maintain its quality for a long time.Because hot filling should have the function of high temperature filling and full filling, it requires to be equipped with automatic circulation system, which is convenient for low-temperature material circulation heating and CIP circulation cleaning.



Milk Bottling Plant details:



No Detail description
1 The module of screw capper ensures the tightness of the capping effect, and avoids bottle, cap damage.
2 Slight negative-pressure gravity circumfluence filling system increases milk / juice filling accuracy and reduces contamination.
3 Unique control mechanism keeps circumfluence volume below 5%.
4 Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality.
5 High efficient clean air filter circulation system ensures high sanitary requirements.
6 Low overall machines noise that is comparable to any internationally known equipments in its class.
7 Self-lubricationg system imported from America provides continuous smooth operation.



Automatical 32 Filling Head Automatic Milk Bottling Plant
