| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO, CE |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 30-45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15 Sets per Month |
| Product Name: | Small Scale Milk Filling Machine | Function: | Washing Filling And Capping |
|---|---|---|---|
| Machine Material: | Stainless Steel SUS304 | Power: | 380V Or Customize |
| Filling Material: | Milk , Juice, Flavor Drink, Water | Suitable Bottle: | PET Bottle, HDPE Bottle |
| High Light: | Monoblock 20000 BPH Filling Line,20000 BPH Milk Bottling Equipment,Washing Filling Capping Machine |
||

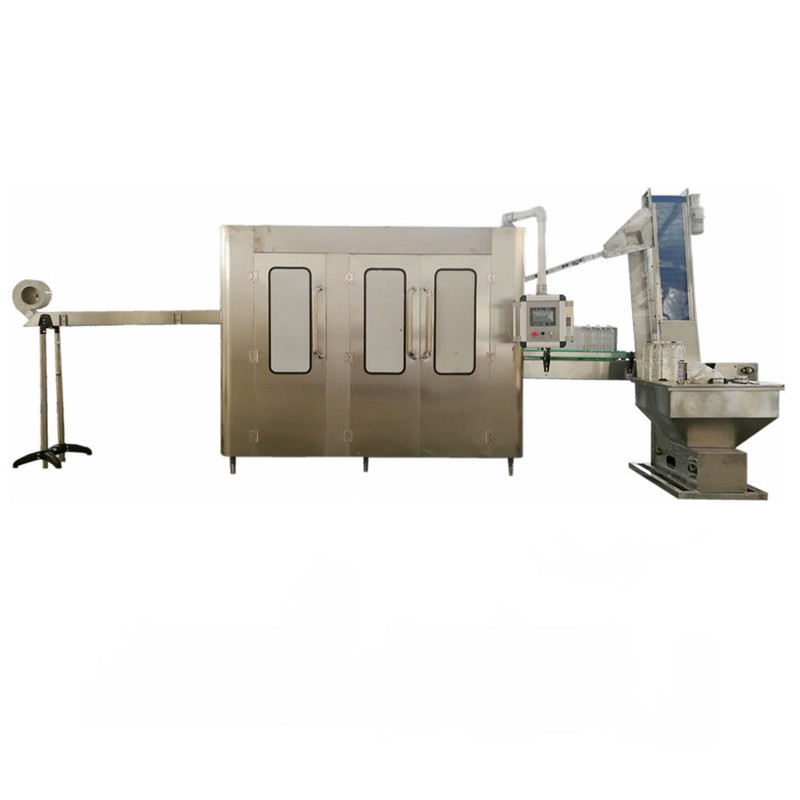

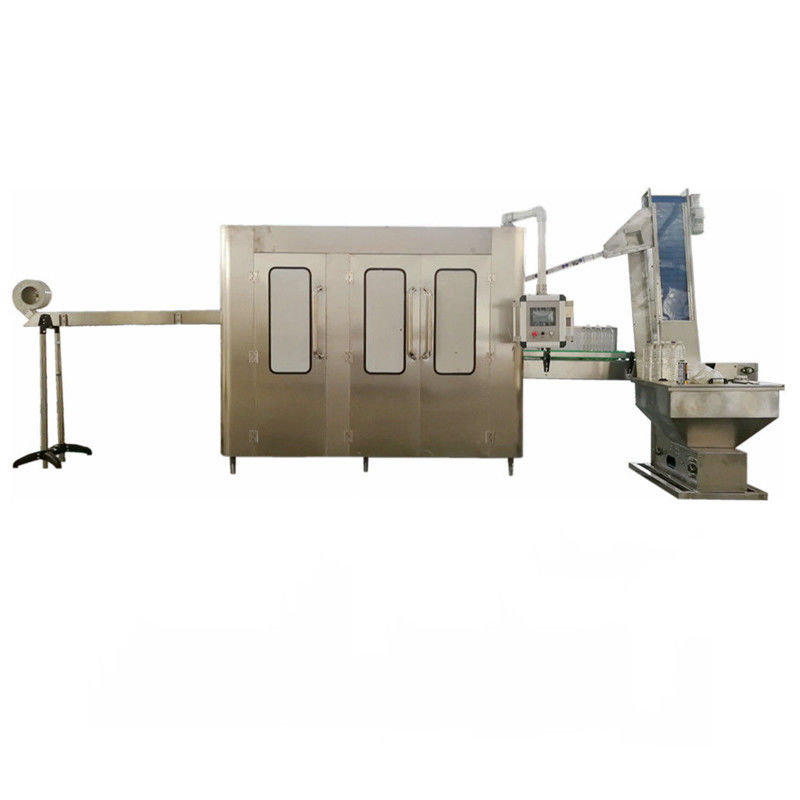

Washing Filling Capping Monoblock 20000 BPH Filling Line
1. Capacity:2000-20000bph
2. Bottle size: 200ml-2L PET Bottle
3. Bottle material: Plastic
4. Automatic Rinser, Filler& Capper monobloc filling machine
5. PLC controller- Japanese Mitsubish / Omron International famous brand components
Product Application

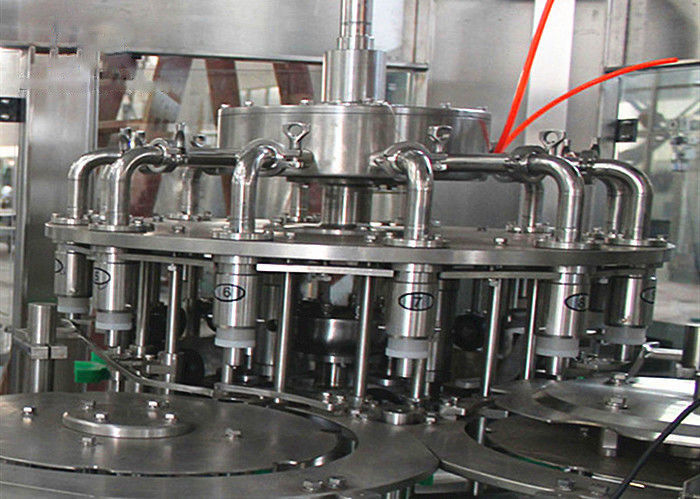

Milk Filling Line is a unique design combining the three machines of bottle washing,filling and capping in one to decrease main power, to save space and to diminish the air pollusion among the three machines. It is applicable for mineral water juice, Milk,
flavor drink filled in plastic bottles and capped with plastic caps, with optional capacity from 3000BPH to 20000BPH.It uses frequency changer to control the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.
Technical Parameter
|
Model:
|
CGF16-12-6
|
CGF18-18-6
|
CGF24-24-8
|
CGF32-32-10
|
CGF40-40-12
|
CGF50-50-15
|
|
Capacity:
(BPH)
(500ml)
|
2000-4000
|
5000-6000
|
8000-12000
|
12000-15000
|
16000-20000
|
20000-24000
|
|
Suitable bottle standard:
(mm)
|
150-300
|
150-340
|
150-340
|
150-340
|
150-340
|
150-340
|
|
Suitable cap standard:
(mm)
|
φ50-φ110
|
|||||
|
Filling
pressure:
(Mpa)
|
0.2-0.3
|
|||||
|
Installed
power:
|
3.13
|
3.84
|
3.84
|
5.6
|
6.3
|
7.3
|
|
Filling
temperature:
(℃)
|
Room Temperature
|
|||||
|
Dimension
(L*W*H):
(mm)
|
2400*1670*
2350
|
2470*1970*
2350
|
2865*2170*2350
|
3700*2570*2350
|
3800*2950*2400
|
4500*3400*2400
|
|
Total weight:(kg)
|
2500
|
3000
|
4000
|
5000
|
6000
|
7000
|
