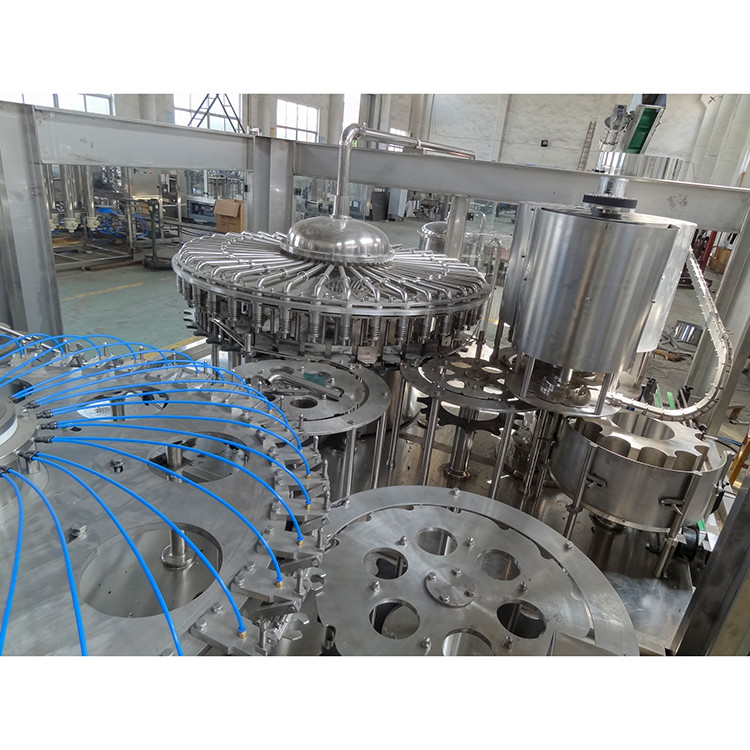

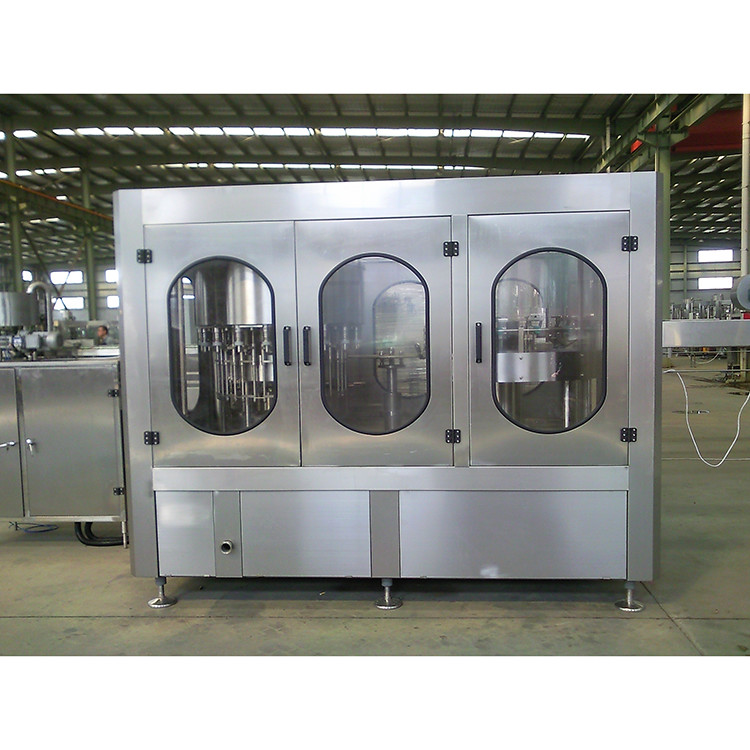

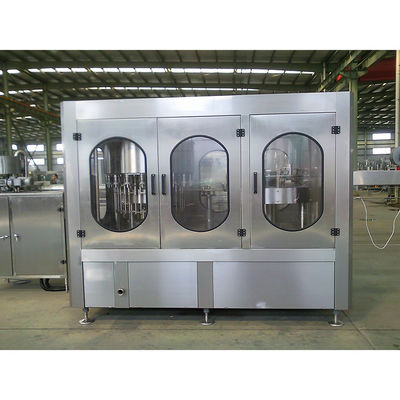

220v SUS304 50 Filling Heads Rotary Milk Bottle Filling Line

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Contact Now
Detail Information
Name: Rotary Milk Bottle Filling Line Dimension(L*W*H): 3000*2750*250mm
Automatic Grade: Automatic Voltage: 220v
Capacity: 12000BPH, 20000BPH, 16000BPH, 36000BPH Capping Head: 12
Filling Heads: 50
High Light:

SUS304 Rotary Milk Bottle Filling Line

,

12500 kg rotary milk bottle filling line

,

20000 BPH Filling Line


Product Description

220v SUS304 50 Filling Heads Rotary Milk Bottle Filling Line



Main Feature


1) Compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.
2) Only exchanging “star wheel”, ”feeding screw” and “arc guide plate” while exchanging model of bottle to be need.
3) High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
4) The “capping head” is adopted magnetic-constant-torque device to ensure the high capping quality and without damages.

5) The all parts directly contacted with media are all adopted with food stage stainless steel without dead angle, so they can be cleaned easily.

6)Adopting efficient cap settling system which carried perfect cap feeding and protection device.
7) Adopting advanced valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.
8) Closing feeding valve automatically while no bottle on machine avoiding the loss of aqueous feet. Filling automatically with a high speed and the control of liquids level is accurate.

9) It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel. And to adjust the input height is not necessary for exchanging model of bottle.
10) Because of applying touch screen for operation, it is possible to realize man-machine conversation whereas the status of device running is clear at a glance.

11) Carried the perfect protection system to overload; it can be used to protect facilities and operators efficiently.


The primary electric components such as touch screenPLCtransducer etc. are all adopted with world famous products.



Machine Data



Model
Fill-12
Fill-15
Fill-36
Capacity
12000BPH (500ml)
15000BPH (500ml)
36000BPH (500ml)
Bottle Height
120~310mm
120~310mm
120~310mm
Bottle Diameter
ф50~ф96mm
ф50~ф96mm
ф50~ф96mm
Mouth Diameter
26mm~40mm
26mm~40mm
26mm~40mm
Washing Head
24pcs
50pcs
80pcs
Washing Time
>2second
1.5-2 second
>2second
Filling Heads
24
50
80
Filling Temperature
85-90℃
85-90℃
85-90℃
Filling Pressure
0.2~0.4Mpa
0.2~0.4Mpa
0.2~0.4Mpa
Filling Valve Flow
120~150ml/s
140~160ml/s
120~150ml/s
Filling Pipe
SUS304, High temperature affordable
SUS304, High temperature affordable
SUS304, High temperature affordable
Capping Head
8
12
18
Capping Strength
0.6~2.8Nm(adjustable)
0.6~2.8Nm(adjustable)
0.6~2.8Nm(adjustable)
Main Power
5.5 KW
13 KW
15 KW
Air Consumption
1m 3/min(0.6MPa)
1m 3/min(0.6MPa)
1m 3/min(0.6MPa)
Sterilized Water Consumption
1.2m3/h(0.2-0.25Mpa)
1.5m3/h(0.15-0.2Mpa)
1.5m3/h(0.2-0.25Mpa)
Overall Dimension
3000×2750×2500mm
3000×2750×2500mm
3000×2750×2500mm
Weight
6000Kg
12500Kg
12500Kg
