PET / Glass Bottle 3 In 1 Monoblock Milk Filling Line

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Contact Now
Detail Information
Product Name: Milk Products Manufacturing Machines Function: 3 In 1
Power: 5Kw Bottle Type: PET / Glass Bottle
Automatic Grade: Auto Application: Milk / Juice / Beer / Carbonated Drinks
High Light:

monoblock milk filling line

,

monoblock rotary filling machine

,

3 in milk filling line


Product Description

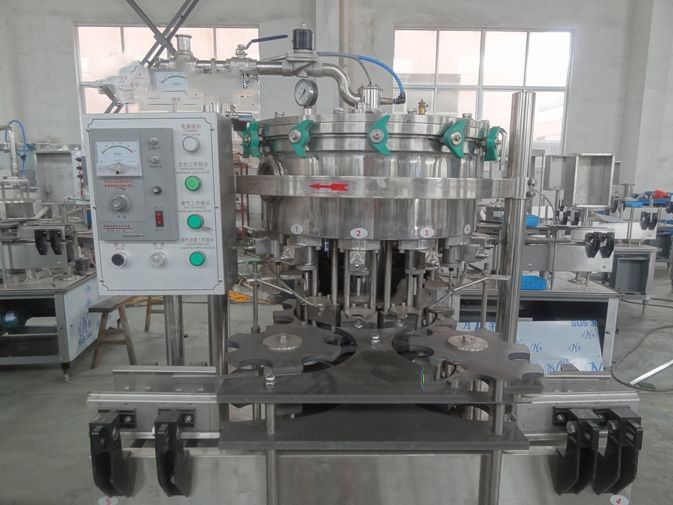

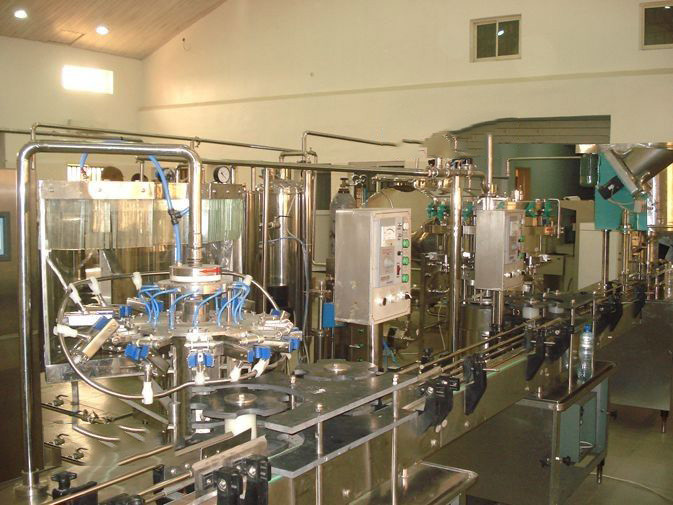

PET / Glass Bottle 3 In 1 Monoblock Milk Filling Line


Description:

1. This
3 In 1 Monoblock Milk Filling Line is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space.
2. It is applicable for milk filled in plastic bottles and capped with plastic caps, with optional capacity from 1200BPH to 12000BPH.
3. It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.
4. Adopting suspensory transmission gear can easily upkeep and be repaired.
5. The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.



Quick Detail:

  1. Products: 3 In 1 Monoblock Milk Filling Line
  2. Bottle size: 250-1250ml
  3. Main material: SS304
  4. Certificate: CE&SGS
  5. Production capacity: 2000bph PET bottle


Applications:



This model special for milk, carbonated beverage filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.



Specifications:


Washer



Production capacity: 2000bph

PET bottle size: 250-12500ml

Diameter of bottle: 62-100mm

Height of bottle: 160-320mm

Power: 0.75kw

Dimension: 1170*1120*1800mm

Weight: 800kg



Filler



Production capacity: 2000bph

PET bottle inner diameter of inlet: 15-18mm

Power: 0.75kw

Dimension: 1000*800*2000mm

Weight: 500kg



Capper

Production capacity: 2000bph

Diameter of bottle: 50-100mm

Height of bottle: 150-320mm

Power: 0.75kw

Dimension: 900*700*1900mm

Weight: 350kg
