450kg Electric 120 Bottles/Min Monoblock Milk Filling Line

450kg Electric 120 Bottles/Min Monoblock Milk Filling Line supplier
450kg Electric 120 Bottles/Min Monoblock Milk Filling Line supplier 450kg Electric 120 Bottles/Min Monoblock Milk Filling Line supplier 450kg Electric 120 Bottles/Min Monoblock Milk Filling Line supplier 450kg Electric 120 Bottles/Min Monoblock Milk Filling Line supplier
Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Contact Now
Detail Information
Name: Automatic Filling Capping Machine Driven Type: Electric
Dimension(L*W*H): 2.6*1.5*1.8m Speed: 15~120bottles/min
Power: 3KW Material: SS304
Weight: 450kg Packaging Material: Plastic, Metal, Glass
High Light:

120 Bottles/min Monoblock Milk Filling Line

,

Automatic Monoblock Milk Filling Line

,

450kg milk filling line

Product Description

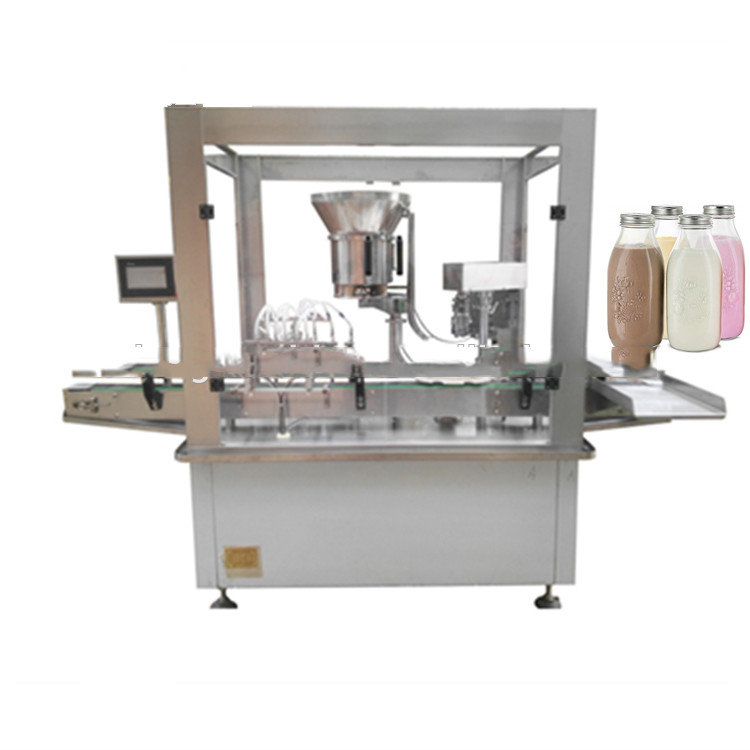

450kg Electric 120 Bottles/Min Monoblock Milk Filling Line



Product Description



This machine is the main parts in the liquid production line, mainly used for 10~1000ml filling, feeder caps, capping. Straight line conveying, 4/6/8/16-pump linear filling, touch screen interface, frequency control. And it has the functions of lack of bottle, no bottle, no cover, etc., high degree of automation. Filling does not leak liquid, electromagnetic vibration to feed cover, equipped with dust cover. The machine is reasonable in design and easy to operate. SUS304 machine body, GMP standard and CE certificate approved.



Model
RL-80YL
Bottles filling speed
15~120 bottles/min
Filling nozzle
4/6/8/12/16
Capping nozzle
1/2/4/8/10
Filling accuracy
+/- 1%
Power
Customized
Machine dimension
Customized
Machine body material
SUS304
Machine weight
Customized
Power supply
220V/380V accept customization



Product Application

Machine is suitable for automatic bottle filling, feeding caps and capping of vairous medicine, food, beverage, chemical liquid, like syrup, oral liquid, milk, juice, alcohol, wine, sauce oil, iink, solvent. etc.



Control parts

Name: touch screen

Our machine touch screen is very good and mature brand.

Can adjust the speed on the touch screen

Optional function: adjust filling volume on touch screen

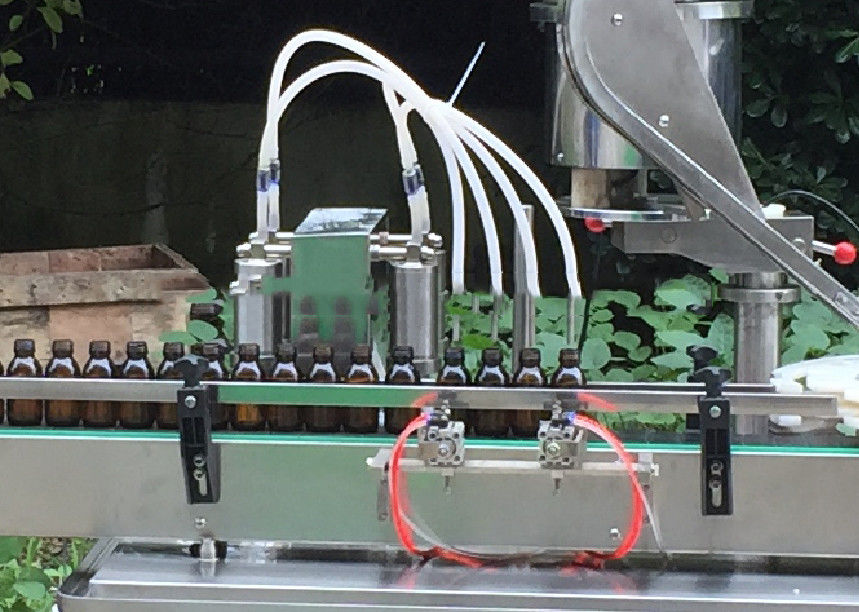

Filling parts

Name: filling nozzle
No bottles, no filling. filling nozzle with automatic suck-back function, do dirt the bottles

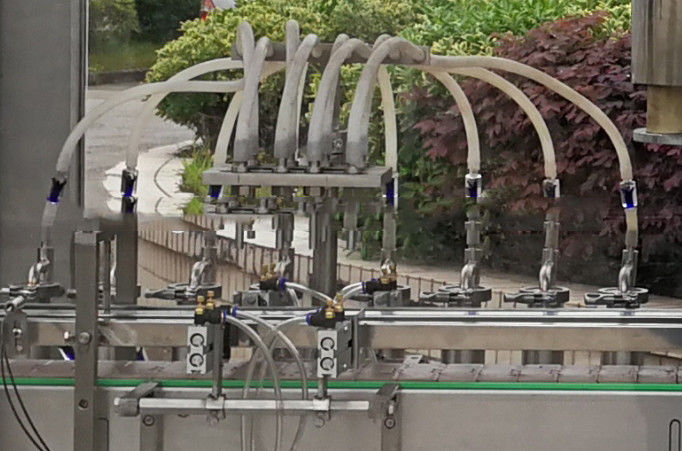

Filliing parts

Optional 8 nozzle high speed bottle filling.

We also have 6 nozzle filling, 12 nozzle, 16 nozzle filling can customized



Capping parts



Name: vibration caps feeder

For caps or covers, we adopts vibrations types caps feeder. It is much more conveninet and economy.
Optionals caps elevator
Different caps need changes different caps feeder



Capping parts

Name: capping nozzle
Crimping nozzle for metal caps sealing.

Different caps may need change capping nozzle

We can do 1/2/4/6/8 different number capping nozzle

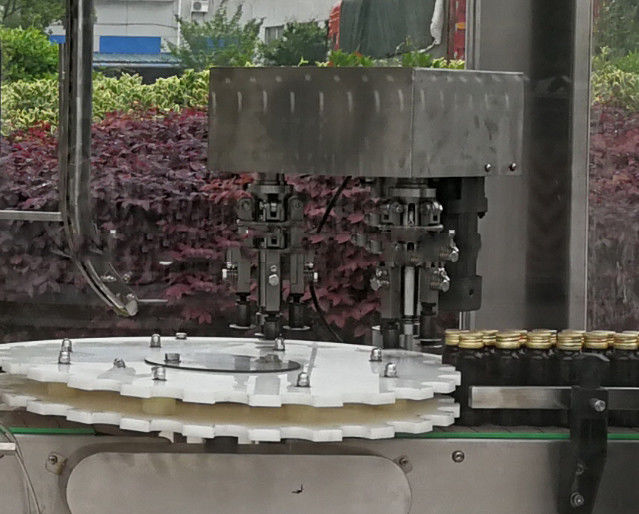

Capping parts

Name: capping nozzle

Different caps need change different capping nozzle.

Higher speed clamshell machine also available.

450kg Electric 120 Bottles/Min Monoblock Milk Filling Line
