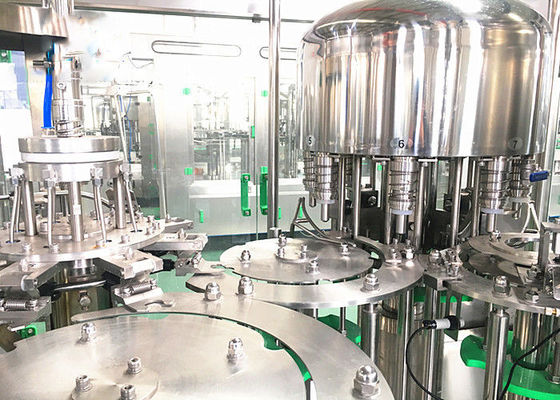

3.1KW Stainless Steel 3 In 1 Monoblock Milk Bottling Plant

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Contact Now
Detail Information
Name: Automatic Milk Filling Machine Material: Stainless Steel
Filling Temperature: 85-92℃ Size: (L*W*H)1900*1600*2400mm
Power: 3.1KW Capacity: 1500-2000 Bottles Per Hour(500ml Bottle)
Filling Head: 8 Pcs Capping Head: 3 Pcs Plastic Screw Type
High Light:

Monoblock Milk Bottling Plant


Monoblock milk filling machine

Product Description

3.1KW Stainless Steel 3 In 1 Monoblock Milk Bottling Plant


Details description:


We provide two types empty bottle feeding way, first one, filling machine can be directly connected to automatic bottle blowing machien with air conveyor, then bottles will be sent to filling machine working position automatically without people touching. Second, people can collect empty bottles first, then feed the empty bottle to air conveyor part of filling machine, we will provide bottle feeding table for more covenient

operation, we will suggest good way according to customer situation and demands. Bottles rinsing part use stainless steel clamp to hold the empty bottle neck, after bottle get into rinsing part, bottles will be turned 180 degree, which means bottle mouth face to the filling machine working table. Then purifies water will be spray into bottle inside to wash it. We can also add more washing steps, like hot alkaline water rinsing, sterilizing water rinsing steps accoridng to customer blending technology. This machine use high temperature filling, filling tenperature is around 85-92℃, all liquid contact parts is able to to withstand high temperature. Machine equips with liquid reflux system, to deal with the steam effect from high temperature liquid. which is suitabel for tea, hot filling of fruit meat-containing juice, fruit juice, flavored milk, functional beverages, drinking water and other beverages.Screw capping heads and the slide cover linked as a one body, when it move along with the main shaft, the gear of the screw capping shaft will gear with inner tooth ring through idler gear to make it rotate, then screw down the cap, if exceed the stated torque (suction of the magnetic pillar), the slide cover and machinery body will move, the capping cover will not move, which can prevent bottles or caps damaging.


Equipment description:


Milk bottling machine has 3 working positions: rinsing part, filling part and capping part. It’s mainly used to empty bottle rinsing, milk filling and cap screwing. This machine is used for milk production continuously. This milk filing equipment uses bottle neck holding transmission technology to realize automatic bottle rinsing, milk filling and cap screwing.



Product features:


1. It employs single cavity plunger type of fixing filling volume technique and equipped with perfect temperature control system

2. It equipps reverse-flow system to make sure the filling quality, which can avoid the steam effect from high temperature juice

3. Automatic cleaning system is equipped, it can connect to CIP cleaning system directly to clean the filling tank and valve, which is good for machine service life.

4. Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber.

5. Centralized lubricating oil for easy maintenance and maintenance.


Equipment parameters:


Item                 RCGF8-8-3   RCGF12-12-6  RCGF18-18-6  RCGF24-24-8  RCGF32-32-10


bottles per hour

1500-2000 2000-3000 4000-5000 7000-8000 9000-11000

Suitable bottle diameter



Filling temperatur


Machine weight


1500 2500 3500 4500 5000

Machine size

L*W*H (mm)

























3.1KW Stainless Steel 3 In 1 Monoblock Milk Bottling Plant
