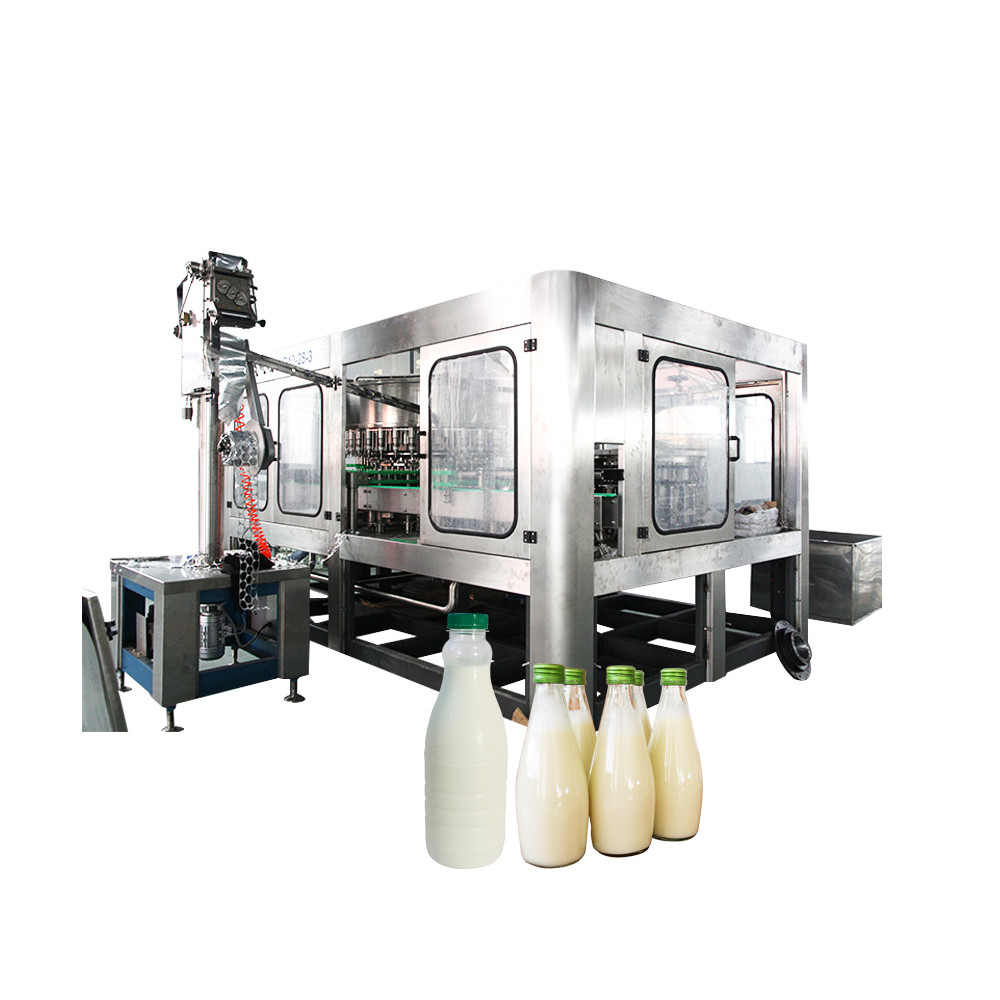

PE Bottle Food Grade Stainless Steel Aseptic Milk Filling Machine

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Contact Now
Detail Information
Name: PE Bottle HEPE Bottle T Milk Filling Machine Automatic Grade: Automatic
Voltage: Customized Bottle: PE Bottle, HDPE Bottle
Dimension(L*W*H): 2200X2100X2200MM Machinery Material: Food Grade Stainless Steel 304, 316L Available
Packaging Material: Plastic Applicable Industries: Milk / Yoghour / Food / Beverage
High Light:

SUS304 Milk Filling Machine


SUS304 aseptic milk filling line


Pet Bottle Monoblock Milk Filling Line

Product Description

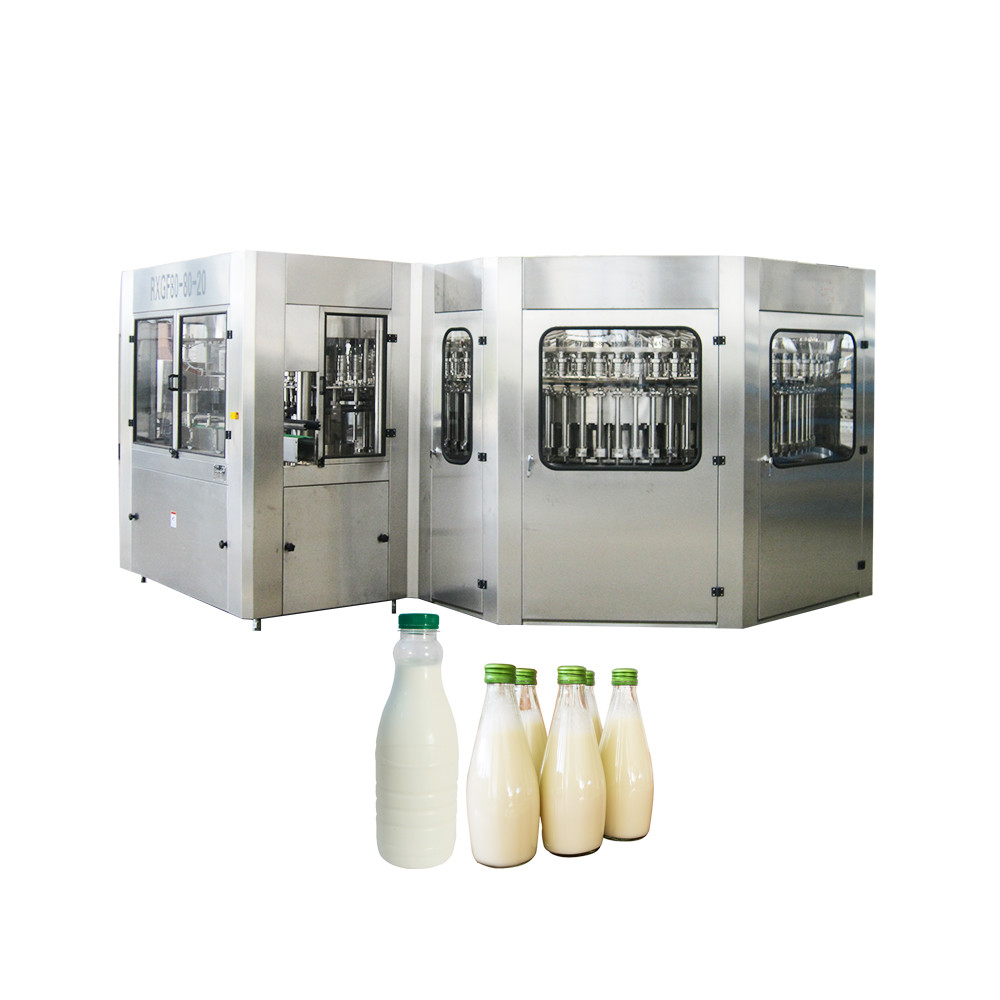

PE Bottle Food Grade Stainless Steel Aseptic Milk Filling Machine


Our milk filling line on basis of the advantages of the similiar foreign products. Our aseptic milk filling line adopts aseptic isolation technology to ensure the aseptic of filling material,packing environment and packaging containers.Reliable sterilizing method is used to sterilize empty bottles and caps.In addition,the utilization of COP and SOP ensures the asepsis of the equipment inside and outside surface and adoption of aseptic compressed air ensures the positive pressure of filling environment for clean room environment.Whats's more,CIP cleaning and SIP sterilizing are used to clean and sterilize the material pipeline, which prevents the material sterilized by UHT from being polluted, thus ensuring the asepsis of final products.


  • The machine's operation is controlled by an advanced touch-screen

  • The machine has compact structure, complete control system, easy operation and high degree of automation

  • High speed filling valve, guarantees liquid has precise level and no waste is incurred

  • The machine applies a highly effective cap arranging system that has complete self control and protective device

  • The machine is equipped with a complete overload protection device that can secure equipment and the operator effectively

  • Main electric components and pneumatic components apply world famous brand products

  • The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap

  • The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting

  • To change bottle shape, the operator only needs to replace the star-wheel, inlet bottle screw and arc guide plate

  • The parts contacting media are made from 304and have no process blind angles to enable easy cleaning


















15 000bph

Detailed Images


Bottle unscrambler

Scramble the ramdom bottles to be loaded in to the air conveyor in a line to be washed.



Composed by Dispenser, rinsing clamp, rinsing water recycle, there is a fixed rinsing time, the empty bottle was held by a fixed track, rinsing, drying, then reaches the cleaning purpose.

The design of filling structure is reasonable and without hygiene dead angle,the run of equipment is stable,the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator,after filling valve contact the bottleneck ,it start to fill.
Bottle is conveying by the wheel in the filling part


Blow dryer

The fast blowing air from the blow of the high-pressure fan is sprayed out of an aperture, to remove the remaining waters from bottles to a high extent. The aperture is side-positioned to blow all sides of bottles with fast flowing air.
