Plate Type UHT Milk Sterilizer Machine

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Detail Information
Name: UHT Milk Plant Material: SUS304 Or SUS316
Type: Plate Type Operation: Full-auto Or Semi-auto
Pasteurizing Technology: 5℃→65℃(homogenizer)→137℃(3-5S)→20℃-25℃ Function: Used For Milk, Juice And So On
High Light:

SUS316 UHT Milk Sterilizer Machine


UHT Milk Sterilizer Equipment


UHT Milk Plant

Product Description

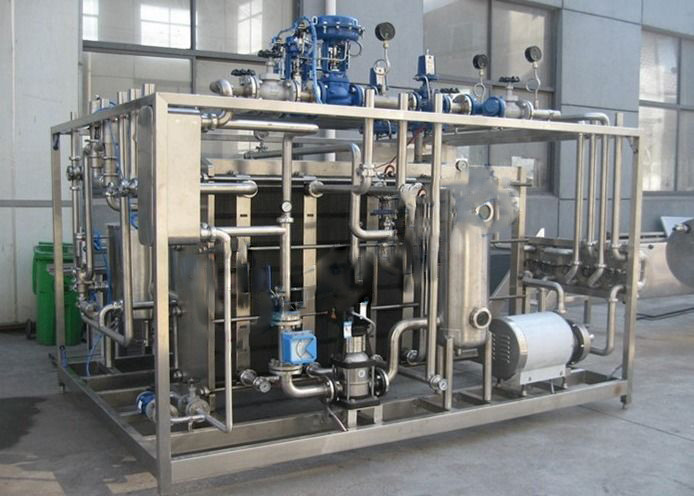

Plate Type UHT Milk Sterilizer Machine




This UHT system adopts ultra high heat treatment to sterilize the liquid dairy products, tea drink and juice for the the aseptic filling production; the sterilize temperature is 137℃ holding for 3~5S, by this procedure to remain the nature nutrition and flavor of the milk and juice;
This machine has the following characteristics: high heat reuse efficiency, tight structure design fine looking and temperature control well etc; discharge temperature of this machine can be self controlled so it is available for the hot filling procedure and meanwhile for aseptic cold filling;






temperature Holding
Sterilize temperature Product outlet temperature Steam consumption Compressed air pressure Compressed air consumption External
Total weight of machine
LG-UHT-1 1000 5℃ 4-15 105~143℃ 20 ℃ ~150Kg/h 0.6MPa 50L/H 3500×2000×2500 1700kg
LG-UHT-2 2000 5℃ 4-15 105~143℃ 20 ℃ ~210Kg/h 0.6MPa 50L/H 3500×2000×2500 2000Kg
LG-UHT-3 3000 5℃ 4-15 105~143℃ 20 ℃ ~280Kg/H 0.6MPa 60L/H 4500×2500×2200 2200Kg
LG-UHT-4 4000 5℃ 4-15 105~143℃ 20 ℃ ~350Kg/h 0.6MPa 60L/H 5000×2000×2200 2500Kg
LG-UHT-5 5000 5℃ 4-15 105~143℃ 20 ℃ ~420Kg/h 0.6MPa 70 L/H 5000×2000×2200 2800kg
