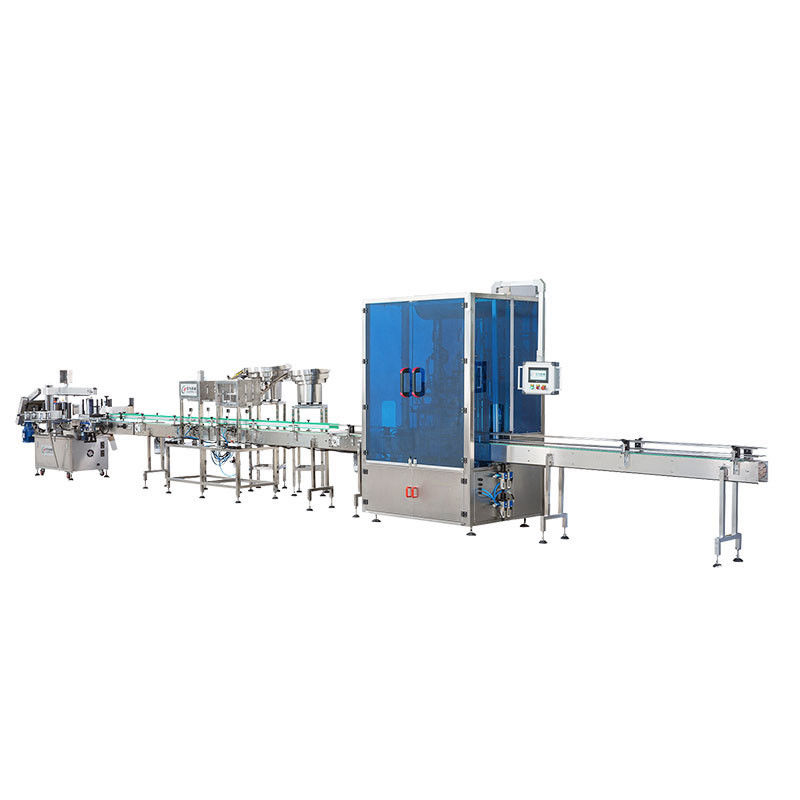

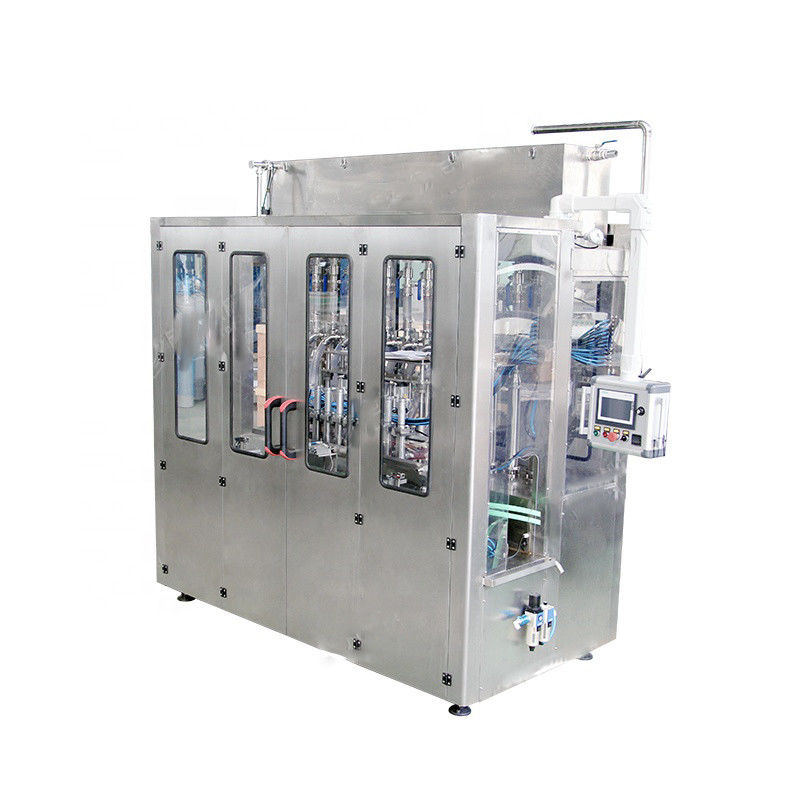

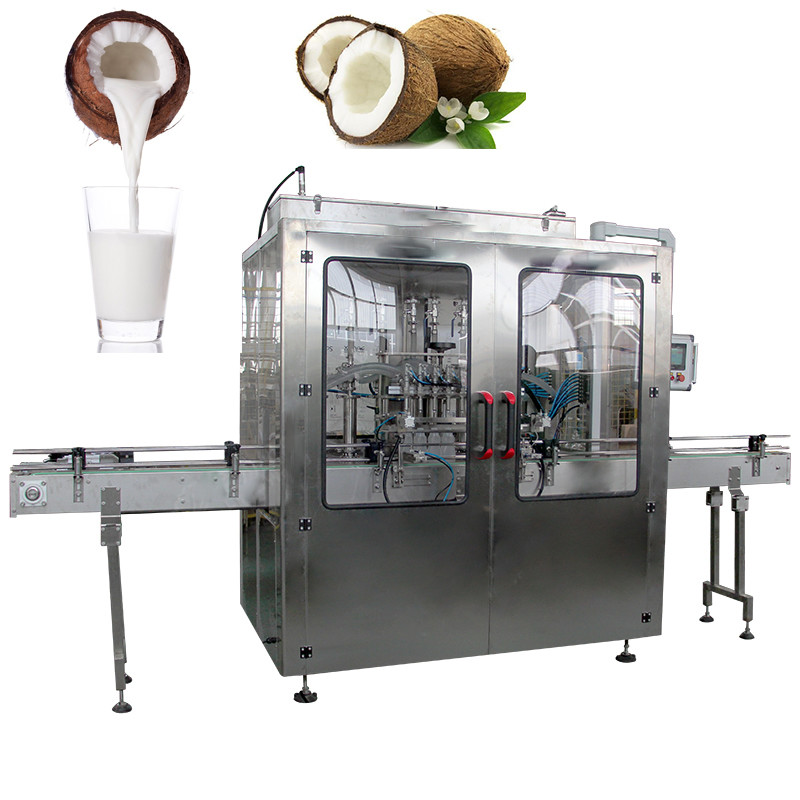

18000 BPH Milk Filling Line

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Detail Information
Type: Milk Production Equipment Packaging Type: Bottles
Automatic Grade: Automatic Voltage: 380V
Condition: New Packaging Material: Glass
Capacity: 4000-18000BPH Bottle Type: Glass Bottle
High Light:

380V Milk Filling Line

,

18000 bph milk filling line

,

500ml bottle Milk Filling Line


Product Description

18000 BPH Milk Filling Line



Features:



1). The machine will be controlled automatically in the running situation. It will run fast or slow according to the bottles quantity in transferring belt. If no bottles, the filling valve and capping valve won’t work. The filling speed, filling bottles quantity will display in the touched screen. PLC will control the open and stop of cap loading system;

2). It adopts imported brand in electric components.

3). Rinsing valve, filling valve and capping valve can be adjusted to go up and down to make different volumes of bottles;

4). Filling level in filling tank is inspected and controlled by precise apparatus, so the filling level in tank is more stable, filling process is more reliable;

5). It adopts the combination open gear and gear-box to transmission;

6). It adopts high efficiency spraying nozzle, the rinsing water will be sprayed out in certain angle completely;

7). It adopts Nylon neck clips to turn over and rinse bottles, rinsing medium can be recycled;

8). It has automatic centralized lubrication system in transmission. It can supply oil to each lubrication point according to actual situation;

9). It is used to fill milk in glass bottle;

10). It adopts double guiding bar to do the centering, bottle transferring is more stable and reliable;

11). Capping valve has auto unloading function to adjust itself according to the tiny different height of bottles, then lower the damaged bottles rate;



  1. Technical Parameter
Item Parameter
Cap type Aluminum screw
Empty cap sterilization O3 sterilizer
Capacity 4000-18000BPH
Volume 500ml
Filling temperature 65-75℃
Rinsing valves 40
Filling valves 40
Capping valves 12
Motor power (frequency convertor) 7.5kw
Consumption of compressed air 3Nm3/h
Pressure of compressed air 0.3MPa
Consumption of water 3m3/h
Technology water rinsing pressure 2.5bar
Drying time ≥2sec
Height of bottle 150-310mm
Diameter of bottle 45-90mm
Weight 9000kg
Dimension 3900mm*3800mm*3100mm
