| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO, CE |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 30-45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15 Sets per Month |
| Name: | UHT Milk Bottling Plant | Capacity: | 3000-40000bph |
|---|---|---|---|
| Function: | Washing Filling Capping | Material: | SUS 304 |
| Bottle Type: | Round Bottle, Case Bottle ,square Bottle, Flat Bottle | Power: | 5.6KW |
| Driven Type: | Electric | ||
| High Light: | 3000 BPH Milk Bottling Plant,40000 bph milk bottling plant,40000 bph uht milk production line |
||

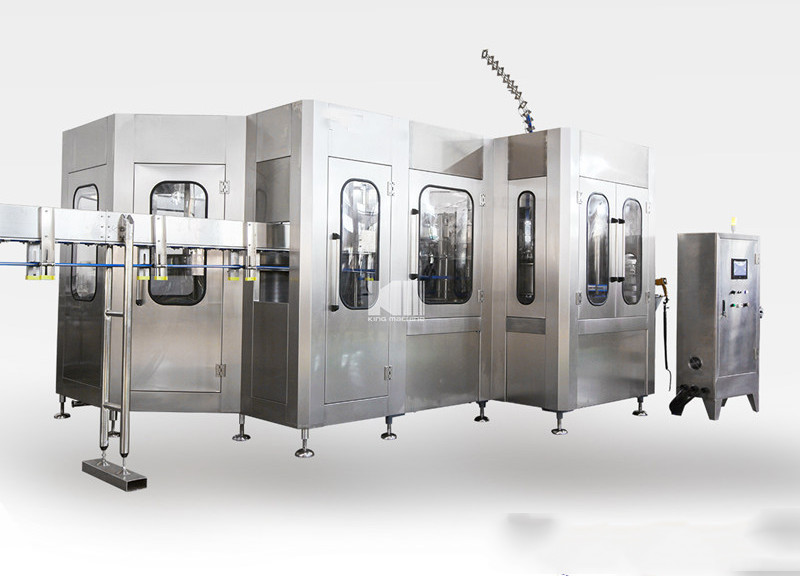

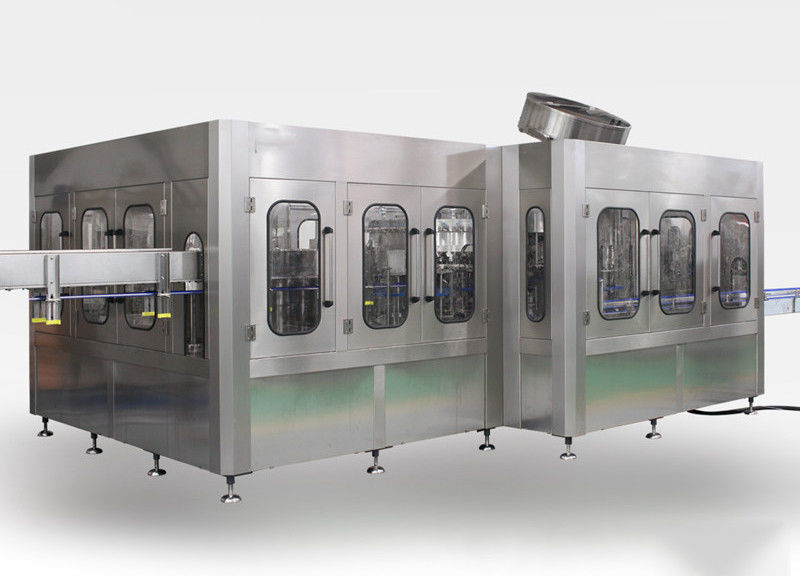

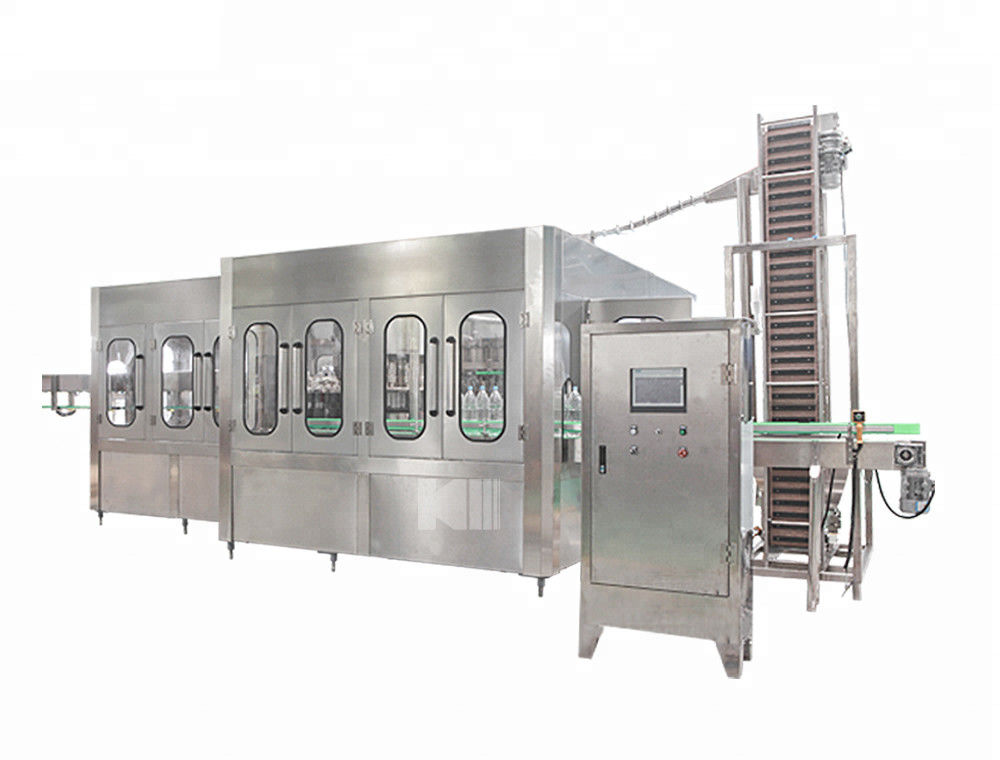

40000 BPH Milk Bottling Plant
Product Description
This Wash-filling-capping 3-in-1 unit : The automatic milk packaging machine / machinery / equipment is used in hot filling and sealing of green tea, black tea, wu-long tea and milk drink. This machine integrates washing, filling and capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine.
1. Automatic Juice Filling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304/ SUS316.
2. It can apply to fill hot fruit juice, milk, tea and other beverage into thermal proof PET bottle by changing few spare parts.
3. Its usual production capacity is in 1,000-24,000bph, 0.25-2.5L PET bottle is available.
4. Pivotal electrical parts use Mitsubishi, OMRON, and SIEMENS.
5. Filling accuracy is more or less than 1%.
6. We can provide complete beverage ideal solution - blowing. filling. packing for PET bottle. With optional capacity from 1,000-32,000bph.
Washing heads.
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump
Filling heads.
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping heads.
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
Air Conveyor.
Air conveyor is fixed on the floor, with fan installed on the top. Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power. All are made of stainless steel SUS304 /316.
Flat conveyor.
1. Energy saving. High efficient. Adapt to customer factory layout
2. Special lubrication system, keep products clean, health, safety
3. Extended service life
4. Electric eyes design keep whole line running safety and quickly
