| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO, CE |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 30-45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15 Sets per Month |
| Type: | Monoblock Bottling Line | Application: | Beverage, Chemical, Food |
|---|---|---|---|
| Automatic Grade: | Automatic | Dimension(L*W*H): | 2450*1800*2200mm |
| Weight: | 3000kg | Power: | 6.68kw |
| Material: | Food Grade Stainless Steel 304 | Filling Type: | Normal Pressure Filling |
| Control System: | PLC Control | Filling Temperature: | Room Temperature |
| Filling Capacity: | 6000BPH(500ml) | ||
| High Light: | 6000 BPH Monoblock bottling machine,Automatic Monoblock Filling Machine,500ml Monoblock Filling Machine |
||

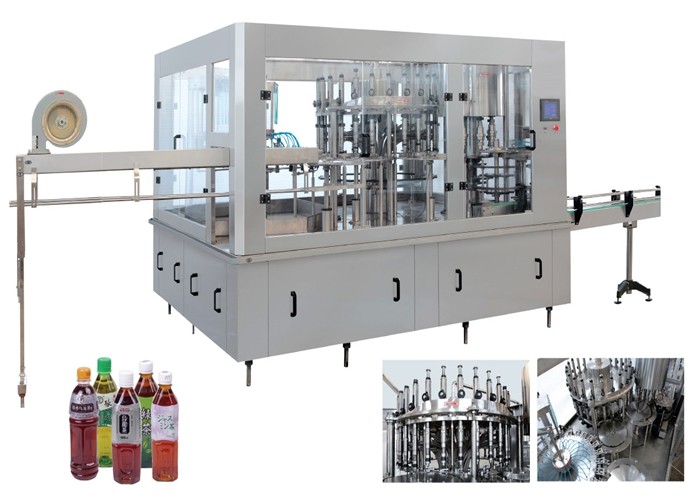

6000 BPH Monoblock Liquid Filling Machine
This machine has washer,filler,capper three functions in one body, automatic in total process, it is suitable for PET bottled liquid,water, minaral water energy drink etc. It makes by high quality SUS304, key parts are precision machined by NC tool. The total machine uses advanced photoelectric detection technology to detect each part's operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.
Automatic juice making and packaging machine
8. To realize stable running, convenient for maintenance and long life, all the electric and pneumatic components are from world famous manufacturer. Example, PLC from OMRON, transducer from MITSUBISHI, pneumatic components from FESTO, switch from TURCK, motors from SEW or ABB, touch screen from DIGITAL, etc
2) Technique parameter
| 16-12-6 | 18-18-6 | 24-24-8 | |
| Productivity | 3000BPH | 6000BPH | 10000BPH |
| Rinsing Head | 16 | 18 | 24 |
| Filling Head | 12 | 18 | 24 |
| Capping Head | 6 | 6 | 8 |
| Bottle Volume | 350ml~2000ml±10ml | ||
| Bottle Diameter | φ50-92mm | ||
| Bottle Height | 150-310 mm | ||
| Filling Tolerance | ±2% | ||
| Cap Size | 28mm and 30mm PE Standard Caps | ||
| Air Pressure | 0.6MPa | ||
| Air Consumption | 500 L/min | ||
| Filling Water Consumption | 1.5 m3/h | 3 m3/h | 6 m3/h |
| Rinsing Water Consumption | 0.5 m3/h | 1 m3/h | 2 m3/h |
| Motor Power | 5.88kW | 6.68kW | 7.68kW |
| Voltage | 380V | ||
| Dimension |
(L*W*H) 2100*1500*2200mm |
(L×W×H) 2450*1800*2200mm | (L×W×H) 2750*2180*2200mm |
| Weight | 2500kg | 3000kg | 5300kg |
| Filling Principle | Gravity Filling | ||
We offer professional turnkey project from design till done of the whole project.
1.Project consultation
2.Design
3.Factory building
4.Installation
5.Commissioning
6.Training
We can provide beverage filling line as below:
1. Complete pure/mineral water production line
2. Complete pure/mineral water treatment machine
3. Complete juice production line
4. Complete carbonated beverage production line
5. 5 Gallons drinking water production line.
6.End-of-line packaging system
Jiayuan company was established in 1997, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have such as CE,ISO etc certification.
We are a company integrating scientific research, production and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc. Now we have been a market leader in the Chinese food machinery industry. The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported over 20 countries, and gained favorable feedback from users. Our major engineering projects include complete dairy products production line, beverage production line, biochemical engineering production line.
