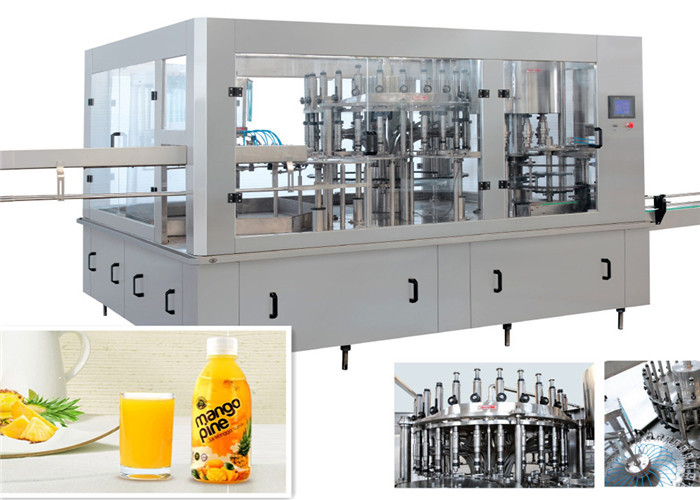

Stainless Steel 380V 50Hz Monoblock Liquid Filling Machine

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Contact Now
Detail Information
Type: Monoblock Bottling Machine Condition: New
Driven Type: Electric Control System: PLC Control
Application: Beverage, Chemical, Food Packaging Material: Paper, Plastic, Wood
Voltage: 380V 50Hz Material: Food Grade Stainless Steel 304
Filling Type: Normal Pressure Filling
High Light:

380V 50Hz Monoblock Liquid Filling Machine

,

Automatic Monoblock Liquid Filling Machine

,

380v monoblock liquid filling machine


Product Description

Stainless Steel 380V 50Hz Monoblock Liquid Filling Machine





Specifications



Juice filling machine combines rinse, filling and capping together. The design is based on the advance International technology and own many years of experience. After considering lots of customers’ feedback, the machine adopts suspended bottle catcher technology which allows it to fill with different type of bottles by simply and easily change the bottle catcher. It can be either used to fill the purified and mineral water under ambient temperature, or used to fill the hot liquid (juice or tea) by change of a few accessories

Mango Juice processing equipment/machine complete production line

1. Automatic Rinsing-filling-capping 3 in 1 juice beverage production line

2. Juice bottling equipment, hot juice filling machine, fruit juice processing machine,juice pulp filling machine.

3. Zhangjiagang, Suzhou city, Jiangsu province, China





1) Feature

  • The juice filling machine is used to fill PET heat-resistant bottle for fruit tea, juice and other high-temperature juice.
  • Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage
  • Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality
  • High efficient clean air filter circulation system ensures high sanitary requirements
  • Low overall machines noise that is comparable to any internationally known equipments in its class
  • The module of screw capper ensures the tightness of the cap and avoids bottle damage
  • Slight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contamination
  • The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology
  • The machine can be connected with UHT, CIP control center and bottle-invert sterilizer
  • The machine structure is reasonable and firm, the running state is stable
  • The suspension bottle neck catcher allows the machine change the bottle type easily
  • Safe protective devices ensure safety of operator and machine
  • Unique control mechanism keeps circumfluence volume below 5%
  •
  • Self-lubricationg system imported from America provides continuous smooth operation

2) Technique parameter



  18-18-6 24-24-8 32-32-10
Productivity 6000BPH 10000BPH 14000BPH
Rinsing Head 18 24 32
Filling Head 18 24 32
Capping Head 6 8 10
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.3 m3/min 0.4 m3/min 0.5 m3/min
Motor Power 6.68kW 7.68kW 9.18kw
Voltage 380V
Dimension (L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm (L×W×H) 3600*2800*3150mm
Weight 3000kg 5300kg 5000kg
Filling Principle Gravity Filling
