3 In 1 Monoblock Automatic Liquid Bottle Filling Machine

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Contact Now
Detail Information
Product Name: Fully Automatic Liquid Filling Machine Bottle Type: PET|Glass Bottle|Barrel
Automatic Grade: Auto Capacity: 2500BPH
Application: Liquid|CSD|Juice|Beer Function: 3 In 1
High Light:

Monoblock Bottle Filling Machine

,

380v Monoblock Liquid Filling Machine

,

3 In 1 Monoblock Filling Machine


Product Description

3 In 1 Monoblock Automatic Liquid Bottle Filling Machine


Description:



1. high efficient hot filling machine/filler range from 300bph to 30000bph, can apply to juice, tea, sport drinks, function drinks, etc.
2. Rinser/Filler/Capper Monobloc
Size of bottle: 500ml (300ml-2000ml)round glass bottle twist-off cap
Method of bottle transferring: hold bottle body
Products: Tea/juice/sports drink/milk/ beverage.
Composition: Base Rinser / Filler / Capper



Quick Detail:

  1. Capacity: 2500BPH
  2. Model: 3-in-1 type
  3. Applicable bottle type: 5-10L bottle
  4. Customizable
  5. CE,ISO,SGS,3-A certificate
  6. Designed power supply: 380V/50HZ/3Phase/AC

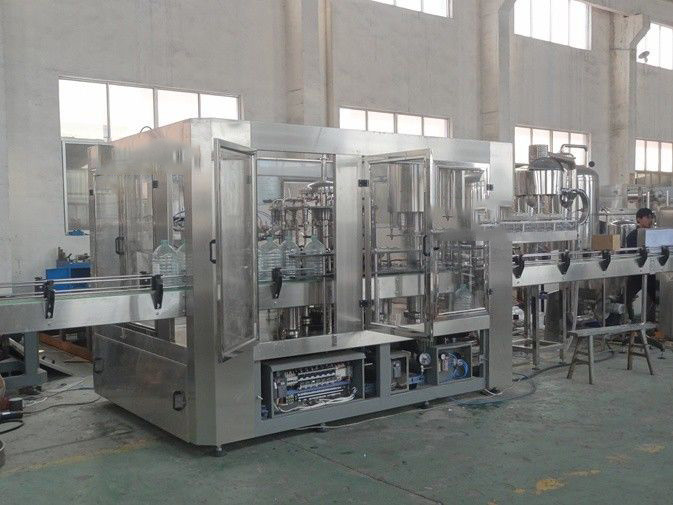

5L-10L bottle water filling machine

bottle filling machine is special designed for 3L.5L, 7L and 10L water bottles. It is combined rinsing, filling and capping function in one unit. This machine is suitable for filling mineral water, pure water, drinking water and other non-carbonated beverage. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.
Machine features

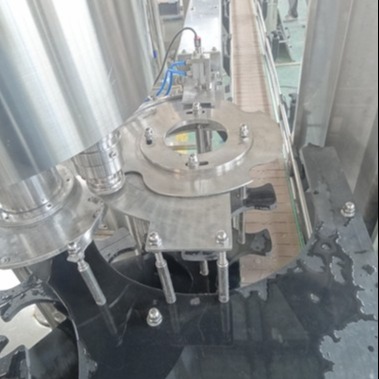

  1. We adopt gripe bottle neck technology simplify process of bottle-size-change, just need to change arc board, starboard or other nylon pieces.
  2. High speed and high flux gravity filing machine valve, insure high speed filing and accurate liquid level with no liquid waste.
  3. Sport board of starwheel using twist descending way to simplify the process of bottle-size-changing. Only need to change height of conveyer, ten minutes is ok.
  4. Specially-designed rinser grippers are made of stainless steel which are firm and endurable, with no contact to screw part of the bottle to keep away of second pollution.


Application

This 5L bottle water filling machine is used for making the following 5L bottles packed beverage:

  1. 5L bottled pure water
  2. 5L bottle oil
  3. 5L bottled juice, etc non-carbonated liquid beverage.
  4. 5L bottled mineral water

Specifications:


Number of heads

12 Rinsing heads,12 Filling heads,4 Capping heads

Applicable bottle size

PET bottle

Diameter

150-195 mm

Bottle height

230~360mm

Rated Capacity

2500BPH(5.0L)

Cap Type

Plastic Screw Cap 46mm Neck for PET Bottles

Volume

6.0/8.0/10.0Liters

Timing Type

Transducer

Washing Drop dryer time

3.4sec

Filling temperature

<40°C

Compress air wastage

0.8~
