| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO, CE |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 30-45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15 Sets per Month |
| Name: | Small Scale Milk Filling Line | Material: | SUS304 |
|---|---|---|---|
| Capacity: | 4000-5000bph | Dimension(L*W*H): | 2400*1850*2400mm |
| Driven Type: | Electric | Voltage: | 220V/380V |
| Automatic Grade: | Automatic | Packaging Material: | Glass, Plastic |
| Application:: | Beverage, Food,milk | Filling Material: | Flowing Liquid |
| High Light: | 5000 BPH Monoblock Milk Filling Line,SUS304 Monoblock Milk Filling Line,2400*1850*2400mm Milk Filling Line |
||

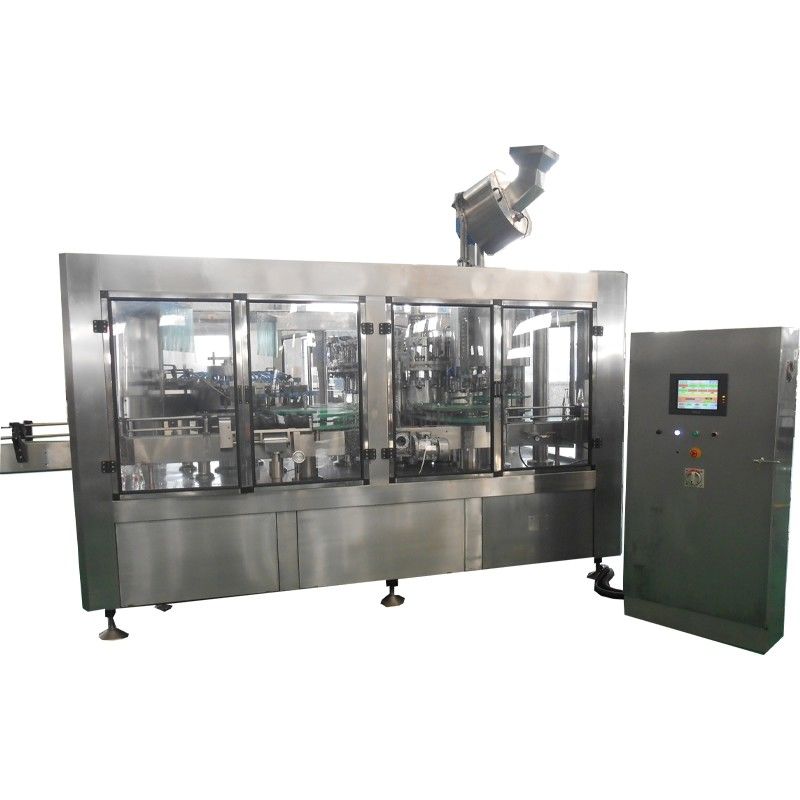

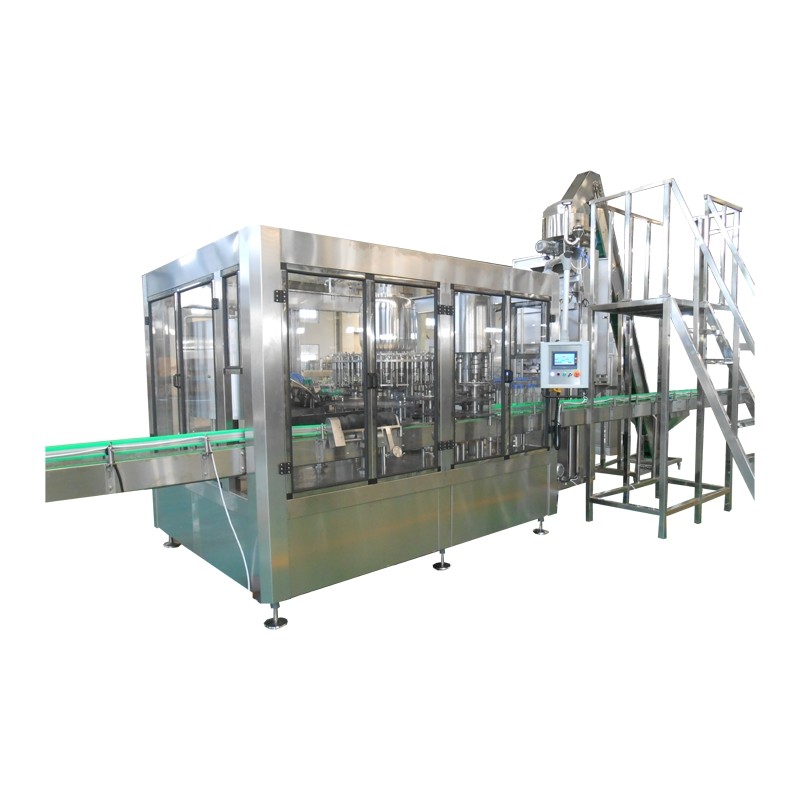

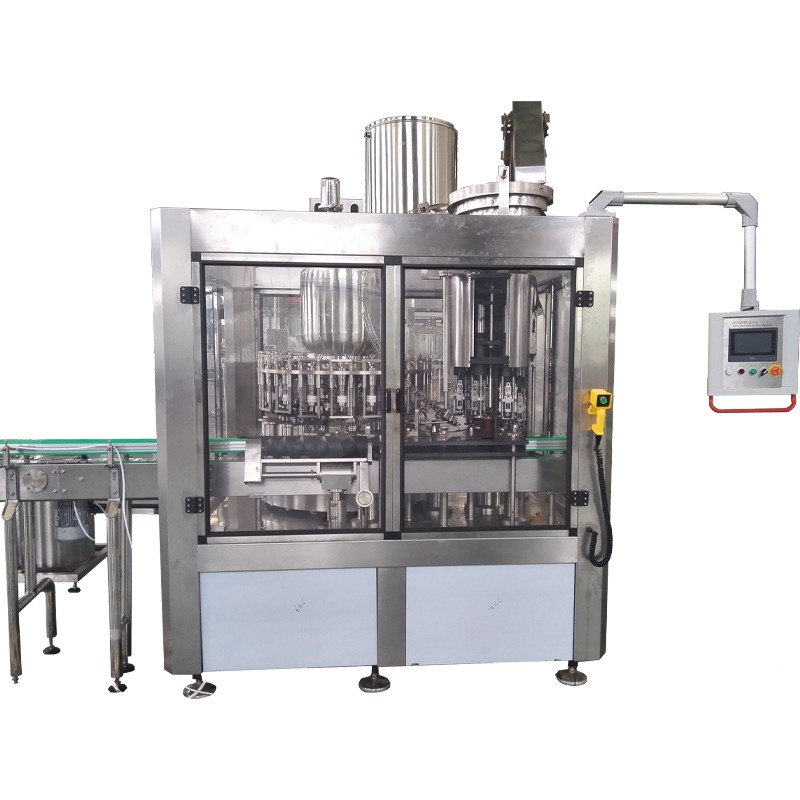

Automatic Pet Bottle 5000 BPH Monoblock Milk Filling Line
Product Information
This pet bottle milk filling machinery has washer,filler,capper three functions in one body, total process is automatic, and it is suitable for high temperature resistant PET bottled milk and tea drink filling, it applies advanced micro-pressure gravity type filling principle, with perfectrecirculation system, also can reach separately gas return, without contacting with material, avoid secondary pollution and oxygen. It is made of high quality SUS304 stainless steel. Main components of this milk packaging machine are processed precisely by CNC machine tool.
Parameter:
|
Model |
RCGF14-12-4 |
RCGF18-18-6 |
RCGF24-24-8 |
RCGF32-32-10 |
RCGF40-40-12 |
RCGF50-50-15 |
|
capacity(BPH) |
3000 |
6000 |
8000 |
10000 |
15000 |
22000 |
|
washing heads |
14 |
18 |
24 |
32 |
40 |
50 |
|
filling heads |
12 |
18 |
24 |
32 |
40 |
50 |
|
capping heads |
4 |
6 |
8 |
10 |
12 |
15 |
|
diameter of bottle |
50-100mm |
|||||
|
height of bottle |
100-300mm |
|||||
|
main motor power(kw) |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
Features:
1. The milk Bottle machine has compact structure, complete control system, easy operation and high degree of automation.
2. To change bottle shape, the operator only needs to replace the star-wheel, inlet bottle screw and arc guide plate.
3. The parts contacting media are made from stainless steel and have no process blind angles to enable easy cleaning.
4. High speed filling valve, guarantees liquid has precise level and no waste is incurred.
5. The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap.
6. The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting.
7. The milk Bottle machine applies a highly effective cap arranging system that has complete self control and protective device.
8 . The milk Bottle machine is equipped with a complete overload protection device that can secure equipment and the operator effectively.
9. The milk Bottle machine's operation is controlled by an advanced touch-screen that can fulfill human-machine communication.
