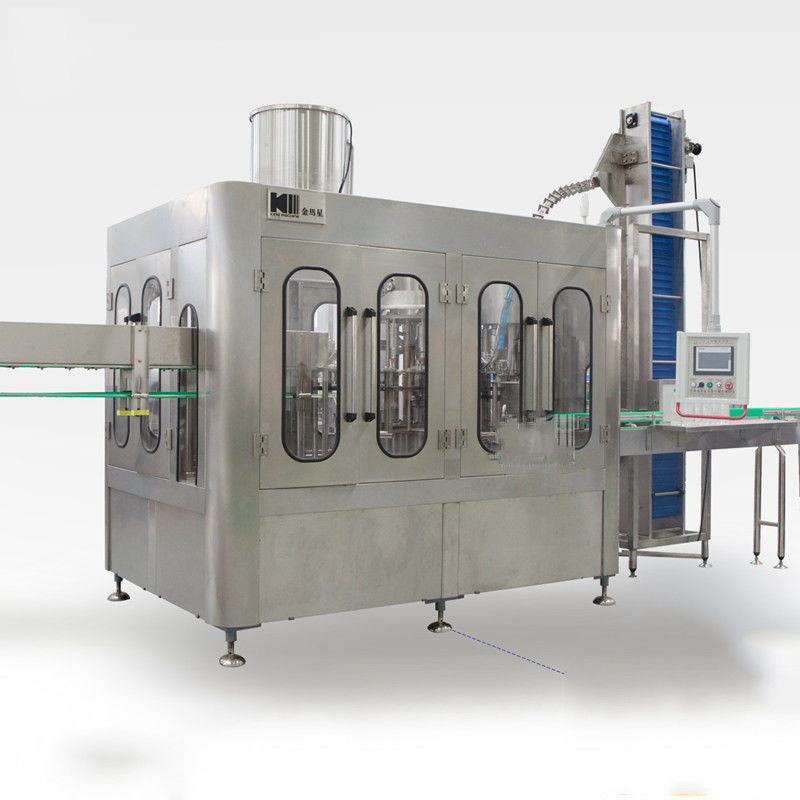

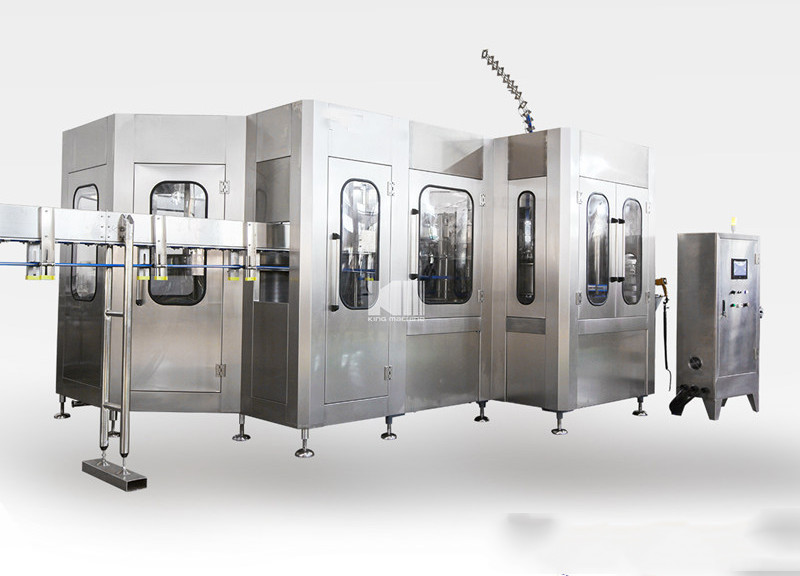

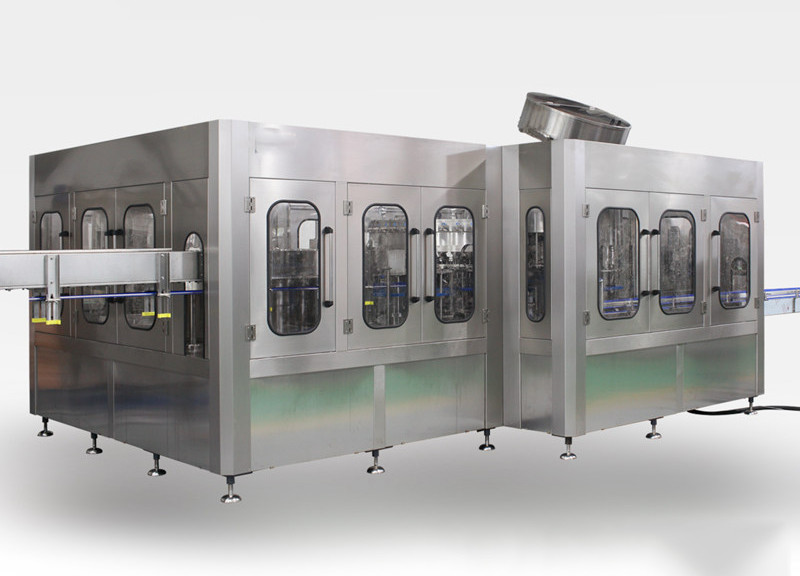

SUS304 40000 BPH 1% Filling Accuracy UHT Milk Production Line

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Contact Now
Detail Information
Name: UHT Milk Bottling Plant Capacity: 3000-40000bph
Power: 5.6KW Material: SUS 304
Function: Washing Filling Capping Bottle Type: Round Bottle, Case Bottle ,square Bottle, Flat Bottle
Driven Type: Electric
High Light:

40000 BPH UHT Milk Production Line

,

SUS304 UHT Milk Production Line

,

UHT Milk Bottling Plant


Product Description

SUS304 40000 BPH 1% Filling Accuracy UHT Milk Production Line





Product Description

1. Filling accuracy is more or less than 1%.
2. We can provide complete beverage ideal solution - blowing. filling. packing for PET bottle. With optional capacity from 1,000-32,000bph.

3. It can apply to fill hot fruit juice, milk, tea and other beverage into thermal proof PET bottle by changing few spare parts.

4. Automatic Juice Filling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304/ SUS316.
5. Its usual production capacity is in 1,000-24,000bph, 0.25-2.5L PET bottle is available.
6. Pivotal electrical parts use Mitsubishi, OMRON, and SIEMENS.



This Wash-filling-capping 3-in-1 unit : The automatic milk packaging machine / machinery / equipment is used in hot filling and sealing of green tea, black tea, wu-long tea and milk drink. This machine integrates washing, filling and capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine.



Washing heads.



<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump



Air Conveyor.

Air conveyor is fixed on the floor, with fan installed on the top. Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power. All are made of stainless steel SUS304 /316.



Filling heads.

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump



Capping heads.

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle



Flat conveyor.

1. Energy saving. High efficient. Adapt to customer factory layout
2. Special lubrication system, keep products clean, health, safety
3. Extended service life
4. Electric eyes design keep whole line running safety and quickly



Model

RCGF
8-8-3

RCGF
12-12-4

RCGF
16-16-5

RCGF
18-18-6

RCGF
24-24-8

RCGF
32-32-10

RCGF
40-40-12

RCGF
50-50-12

RCGF
60-60-15

Capacity based on 500ml/bottle/h

Capacity

2000

3000-4000

4000-6000

6000-8000

8000-12000

13000-15000

16000-18000

20000-24000

26000-30000

Total
power

4

4.4

4.4

4.4

5.2

6.2

7.8

10

13

Weight
<kg>

3000

3200

4000

4500

6500

7500

8500

9000

9500

1, Suitable bottle PET round or square bottle
2, Bottle diameter 50-115 mm
3, Bottle height 160-320 mm
4, Cap PE screw cap or crown cap
5, Filling precision ≤±5%
6, Filling pressure 0.15-0.35Mpa
7, Rinsing pressure 0.2-0.25Mpa
