6250*3050*2400 Stainless Steel 15000 BPH Aseptic Milk Filling Line

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Contact Now
Detail Information
Type: Automatic Liquid Bottle Filling Machine Control: Touch Screen
Feature: Easy Operate Filling Material: Flowing Liquid
Material: Stainless Steel Condition: New
High Light:

6250*3050*2400 Milk Filling Line

,

15000 bph aseptic milk filling line

,

9.5KW aseptic milk filling line


Product Description

6250*3050*2400 Stainless Steel 15000 BPH Aseptic Milk Filling Line



Introduction



It can carry out washing pulp filling, milk filling and capping in one machine. It is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device. Main electronic components are all from famous international enterprises.





Model DCGFB40/32/40/12
Number of Rushing Head 40
Number of pulp Filling Head 32
Number of Carbonated Filling Head 40
Cas Screwing Head 12
Rated Production Capacity 15000BPH
installed capacity 9.5KW
Overall Size:(mm) 6250*3050*2400



6250*3050*2400 Stainless Steel 15000 BPH Aseptic Milk Filling Line


Machine Description

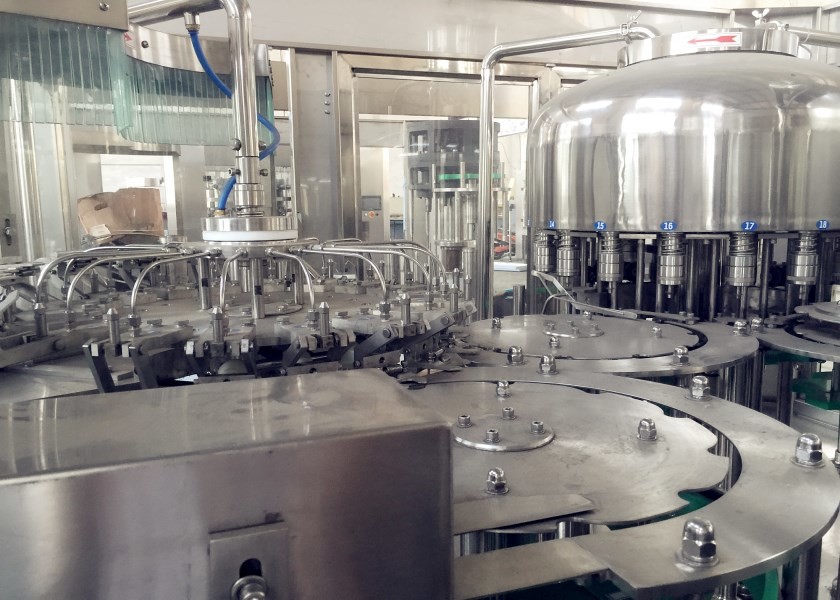

Bottle washing machine



Bottles are bellowed into bottle shifting wheel by air conveyor, and when the flushing clamp reaches the position of bottle neck, the jaw will hold the bottleneck. Under the guide of leading rail, the bottle will be overturned to 180°into an up-right position, and then transmitted into filling position by secondary bottle shifting wheel.

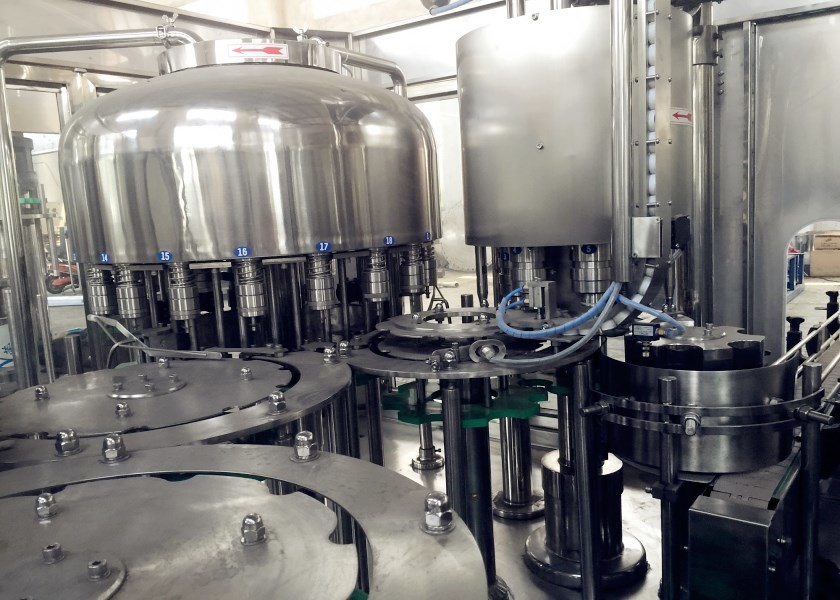

Bottle filling machine



The Filling Part is mainly composed of the filling valve, the switch valve and filling transmission components. The finish-washed bottle is conveyed to filling position by the bottle shifting wheel. At the same time, the valve-opening mechanism will open the filling valves, which with bottle on it, to fill gas in it and then the machine begin to fill liquid. When the liquid level reaches the ration tube, it will stop filling. After closing the valve and finishing exhausting, the neck holding planet of the filling device will clamp the bottle and move down into the capping shifting wheel.



Bottle capping machine



The capping part is composed of 3 sets of screw head, capping transmission part, cap unscrambler, under cover tube and sleeving cover part. Filled-finish bottle will be conveyed to the capping position by the bottle shifting wheel. When the bottle passes the sleeving cover device, the bottle mouth can hung on the cap on the cap output part. And the cap from the sleeving cover will be sleeved on the bottle mouth, and then be planished by the tongue depressor. The cap screw head, which the torque has been adjusted on it, descends when it moves on the same straight line with the bottle, and the triplet cap ring gear will be sleeved on the bottle cap and move down.
