30000 BPH 3 In 1 Monoblock Aseptic Milk Filling Line

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: ISO, CE
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets per Month
Contact Now
Detail Information
Product Name: Liquid Filling Machine Capacity: 2000-30000bph
Material: Stainless Steel Feature: High Efficiency
Control: PLC+ Touch Screen Bottle Type: PET Plastic Bottle
Driven Type: Electric Dimension(L*W*H): 2200CM*2100*2200CM
High Light:

Monoblock Aseptic Milk Filling Line


30000 bph aseptic milk filling line


3 In 1 Monoblock Milk Filling Line

Product Description

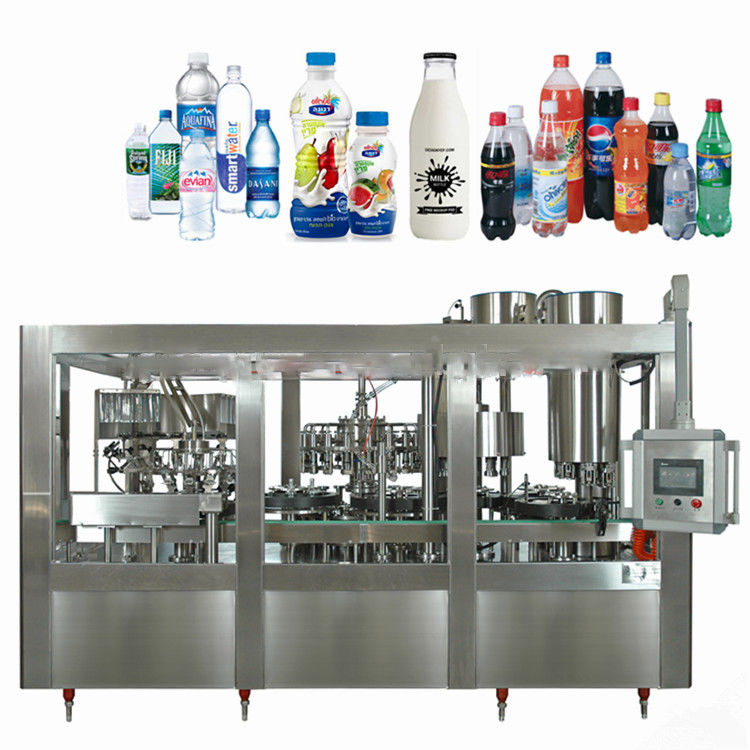

30000 BPH 3 In 1 Monoblock Aseptic Milk Filling Line


Main Features:

1. Our aseptic milk filling line is equipped with centralized lubrication system.

2. Automatic control of CIP and SIP operations is realized.

3. Our aseptic milk filling line is modularly constructed for great flexibility.It combines the dumping machine,rinser,filler and capper into one unit,and the part above the table-board is full closed by shielding can.
4. The rinsing machine can wash the inside and outside of the empty bottle by aseptic water.Dripping is also available.
5. Transmisson part of capping plunger chip uses heat shield device to effectively seperate the pollution zone and clean zone.

6. The imported electronic weighing sensor of filling valve ensures high measuring precision and makes it convenient to adjust product variety.

7. The use of non-contact filling valve effectively prevents second pollution.

8. The adoption of magnetic constant torque capping head helps ensure capping quality.


Product Description:

Our aseptic milk filling line on basis of the advantages of the similiar foreign products. Our aseptic milk filling line adopts aseptic isolation technology to ensure the aseptic of filling material,packing environment and packaging containers.Reliable sterilizing method is used to sterilize empty bottles and caps.In addition,the utilization of COP and SOP ensures the asepsis of the equipment inside and outside surface and adoption of aseptic compressed air ensures the positive pressure of filling environment for clean room environment.Whats's more,CIP cleaning and SIP sterilizing are used to clean and sterilize the material pipeline,which prevents the material sterilized by UHT from being polluted, thus ensuring the asepsis of final products.


Main Models:

Model Output
CGF14-12-5 5000BPH (500ml)
CGF16-16-5 7000BPH (500ml)
CGF24-24-6 10000BPH (500ml)
CGF32-32-8 15000BPH (500ml)
CGF40-40-10 18000BPH (500ml)
CGF50-50-12 22000BPH (500ml)
CGF72-72-18 30000BPH (500ml)
CGF84-84-20 36000BPH (500ml)


Our Serivce:

1. We can offer free technician support and consultation to help you to order a new equipment and start a new company.
2. We can send our technician to your country for machine commissioning and instruction.
3. we are a professional manufacturer in every kind of beverage production machine.
4. We have the certifications of ISO, CE and so on.
5. Our company machines are exported to many countries abroad every year.
5. We can offer one year guarantee for the machine you ordered freely.
